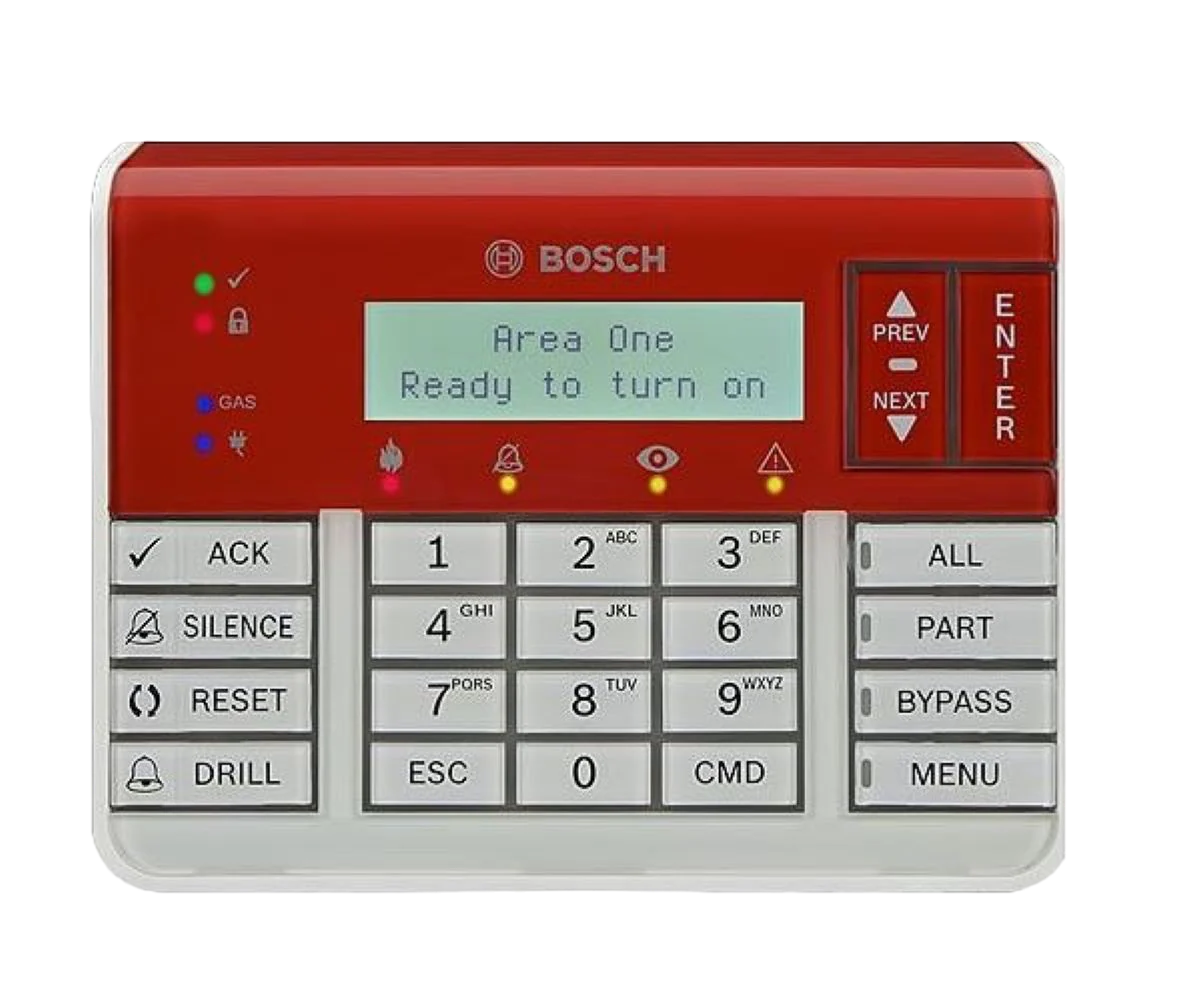

The Bosch B925F is an SDI2 fire and intrusion keypad. It gives operators one interface for both systems. First, dedicated fire keys handle ACK, SILENCE, RESET, and DRILL. As a result, technicians respond to events quickly and clearly.
Bosch B925F display and controls
This keypad uses a two-line LCD. In addition, it shows point, user, and area names up to 32 characters. The backlit keys offer user-adjustable brightness. Therefore, the display stays readable in any lighting. Also, a built-in sounder emits distinct tones. Specifically, separate tones signal fire alarm, fire trouble, and fire supervisory conditions.
Wiring and compatibility
The B925F connects over the SDI2 bus. Furthermore, SDI2 wiring reaches 850 ft with 22 AWG wire. Alternatively, 18 AWG wire extends the run to 1,000 ft. It pairs with Bosch B9512G and B8512G control panels. Then installation stays simple, because the self-locking base and built-in bubble level speed mounting.
For more information, contact the Life Safety Consultants team at 1-888-557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 7 × 6 × 1.5 in |
| Condition | New |
| Manufacturers | Bosch |
| Part Type | Replacement Part |
