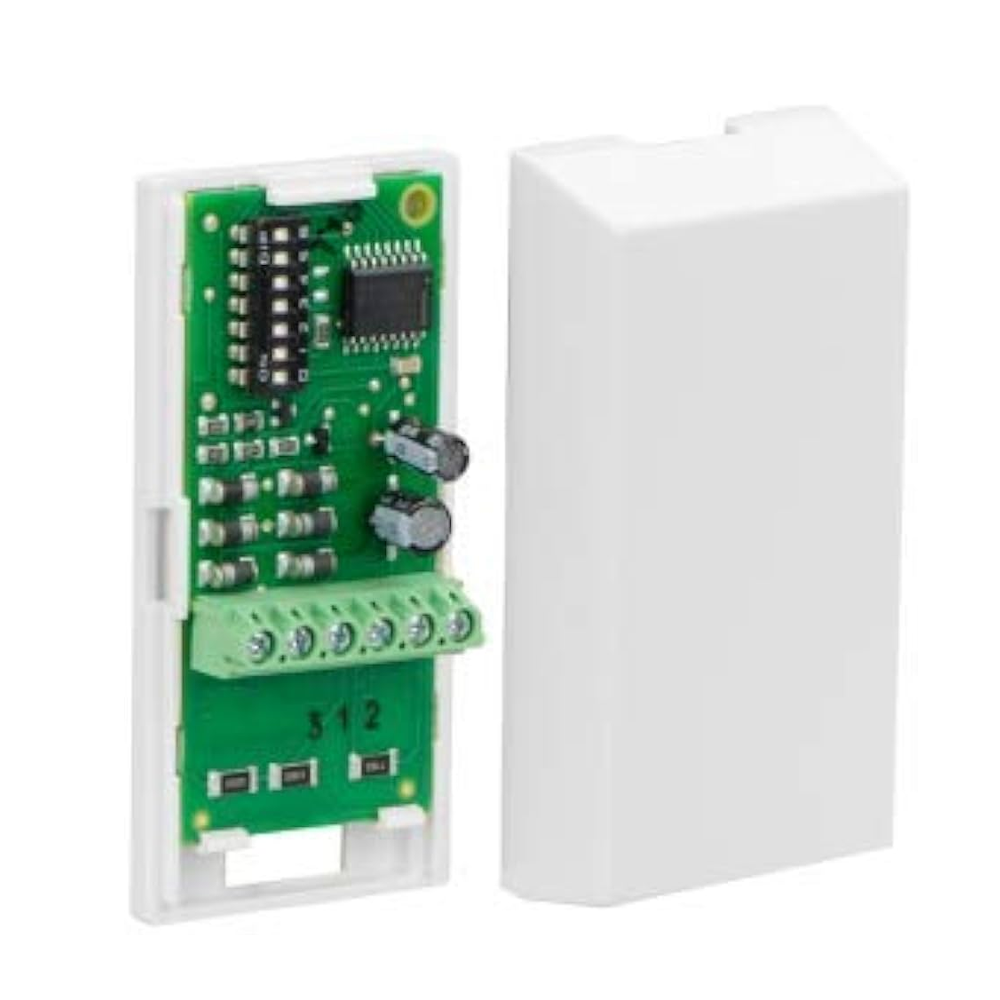

The Bosch D9127T is a single-point POPIT input module with a tamper switch. It expands the point capacity of compatible Bosch control panels. First, the module reports point identification for an initiating device. As a result, the panel pinpoints exactly which point changed state.
How the Bosch D9127T works
This module pairs with a D8125 POPEX addressable expansion module. Therefore, you can add points beyond a panel’s onboard zones. It combines zone and point supervision on a single pair of wires. In addition, the magnetic tamper switch flags unauthorized access.
Wiring
Screw terminals secure the data expansion loop and the supervised sensor loop. Furthermore, the module monitors that wiring for circuit integrity. Install a 33 kΩ end-of-line resistor at the far end of the loop. Then supervision works correctly across the run.
For more information, contact the Life Safety Consultants team at 1-888-557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 3 × 2 × 1 in |
| Condition | New |
| Manufacturers | Bosch |
| Part Type | Heat Detector |
