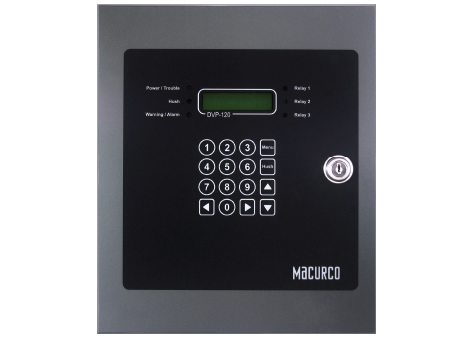

The Macurco DVP-120 is a gas detection and ventilation control panel. It monitors gas levels and controls exhaust fans. As a result, it helps maintain safe air quality in enclosed spaces.
The panel works with Macurco gas transducers. Each transducer measures its target gas, such as CO, NO2, or combustibles. Then it sends that reading to the DVP-120 over a 4-20mA current loop.
How the Macurco DVP-120 Controls Ventilation
First, the DVP-120 accepts up to 12 gas sensor inputs in any combination. Therefore, one panel can cover a large area. In addition, it offers three SPDT (Form C) relays for fan control or alarm signaling.
These relays handle pilot-duty loads up to 10 amps at 240VAC. Also, the panel operates between 32°F and 104°F (0°C to 40°C). Specifically, it suits parking garages and similar ventilated spaces.
Key Features
- Gas detection and ventilation control panel
- Supports up to 12 Macurco gas transducer inputs (CO, NO2, EX, and more)
- Reads sensors over a 4-20mA current loop
- Three SPDT (Form C) relays for fan control or alarm signaling
- Relays switch pilot-duty loads up to 10A at 240VAC
- Operating range: 32°F to 104°F (0°C to 40°C)
Order the Macurco DVP-120
Life Safety Consultants supplies the Macurco DVP-120 control panel and compatible transducers. To order or spec your system, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 7.47 lbs |
|---|---|
| Dimensions | 10.5 × 12.5 × 2 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Sensor |
