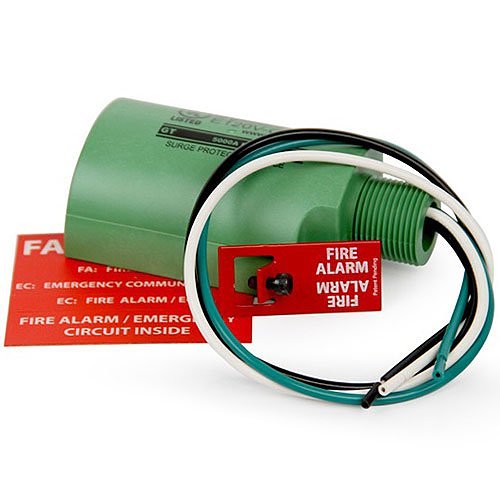

The Space Age E120V-GT is a hybrid surge protection device for 120VAC circuits. It guards fire alarm panels and control equipment against voltage spikes. Specifically, it installs as a parallel device on the protected circuit.
This unit combines two protection technologies in one housing. First, metal-oxide varistors clamp fast transient surges. Then a gas discharge tube handles higher-energy events. As a result, the hybrid design reacts quickly and lasts longer.
Space Age E120V-GT Features
- Hybrid MOV and gas-tube surge protection
- 120VAC parallel-connected device
- 500-joule energy rating
- Surge current capacity up to 25 kA
- Self-restoring after a surge event
- ELOCK lockout tab and labels included
Installation and Use
Installers can mount the E120V-GT directly on a panel. Alternatively, they can place it inside a junction box. Therefore, it protects fire alarm systems, control panels, and other critical equipment. The device is made in the United States.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 7.5 × 5 × 2 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
