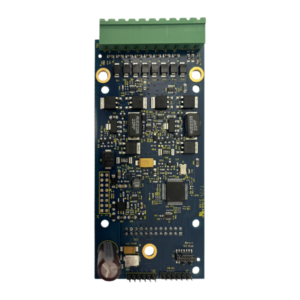

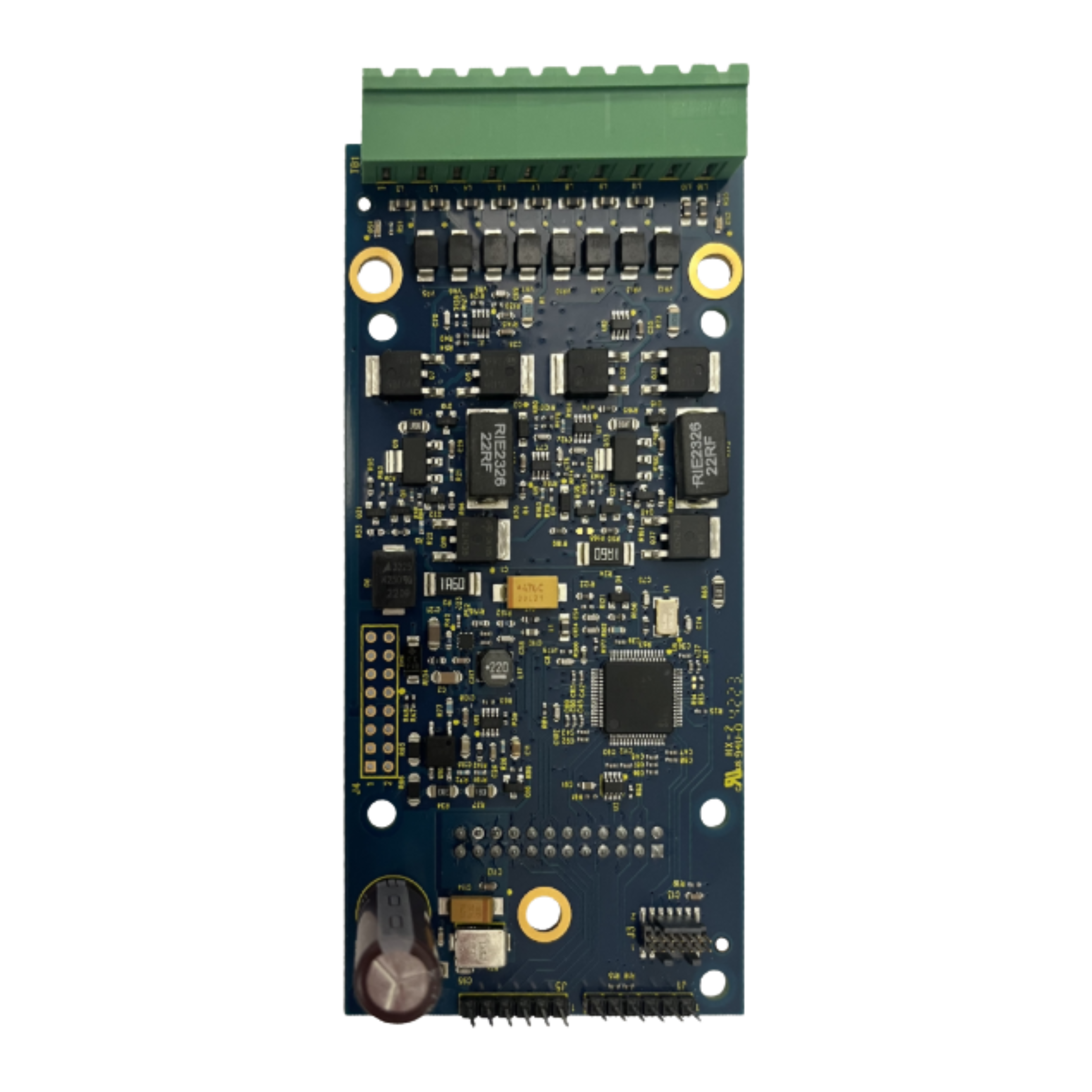

The Edwards EDGE-SLC-250 is a signaling line circuit (SLC) expansion module for EDGE Series panels. First, it adds one addressable loop to the system. As a result, the panel supports more detectors and modules.
Each EDGE loop supports up to 250 addressable devices. Specifically, that includes 125 detector addresses and 125 module addresses. Therefore, one EDGE-SLC-250 expands capacity by a full 250-device loop.
How the Edwards EDGE-SLC-250 expands a system
EDGE panels support up to four loops total. Therefore, designers add SLC modules as device counts grow. In addition, the module integrates directly with the EDGE control architecture for a clean install.
- Adds one 250-device addressable SLC loop to EDGE panels
- Up to 250 devices per loop (125 detectors + 125 modules)
- Supports EDGE panels with up to four loops total
- Integrates directly with the EDGE control architecture
- For use with UL 864 listed EDGE control equipment
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 12 × 4.5 × 3.5 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Module |
