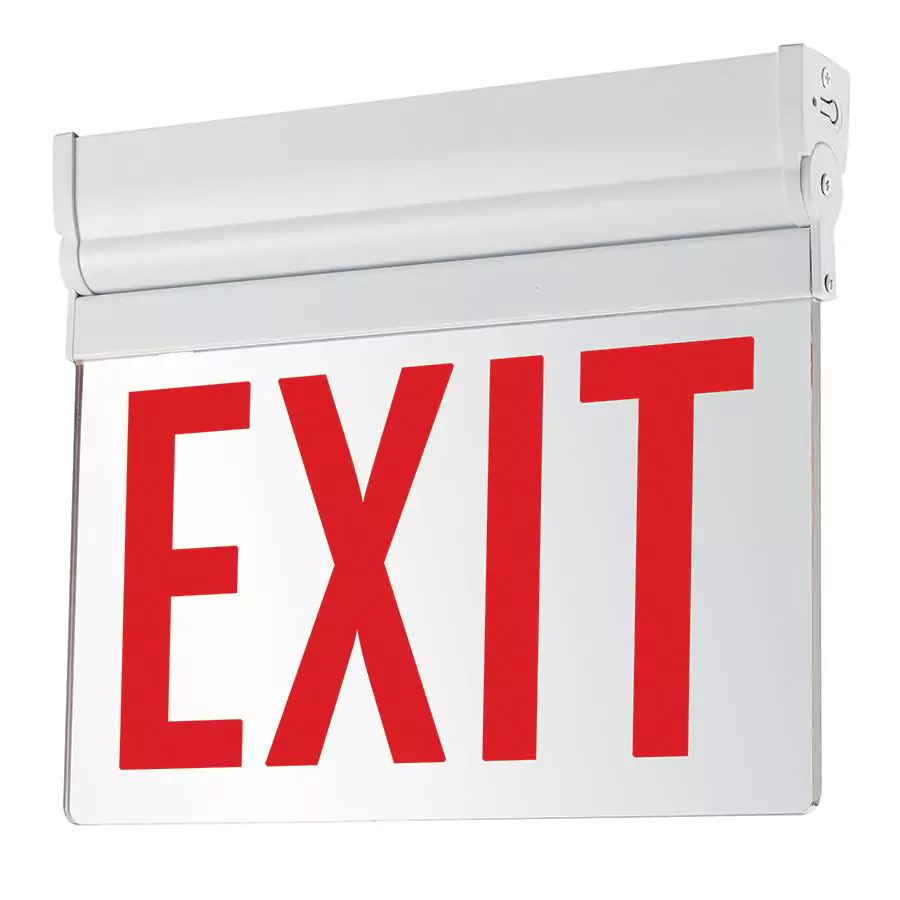

The Mircom EL-7008RA is an aluminum edge-lit LED exit sign with a 2-sided face. First, durable aluminum housing resists corrosion in indoor and damp locations. Then super-bright LED strips edge-light the panel. As a result, the sign delivers clean visibility from both directions.
Mircom EL-7008RA power and runtime
Input voltage is 120-347 VAC universal at 50/60 Hz. Therefore, it fits common commercial and institutional building circuits. In addition, the integrated 3.6 V 1000 mAh NiCd battery delivers 180 minutes of emergency backup.
Mounting and operation
The sign mounts to wall or ceiling using the supplied hardware. Furthermore, an integrated test switch and charge indicator make routine inspections fast. Also, overcharge and over-discharge protection extend battery life.
Environment and rating
The EL-7008RA is suitable for damp locations. However, the operating range is 5-30°C / 41-86°F per Mircom. Specifically, the LED is rated at 50,000 hours. Finally, the unit ships with a standard 3-year warranty and is c-UL-us listed.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 14 × 11 × 3 in |
| Condition | New |
| Manufacturers | Mircom |
| Part Type | Battery |
