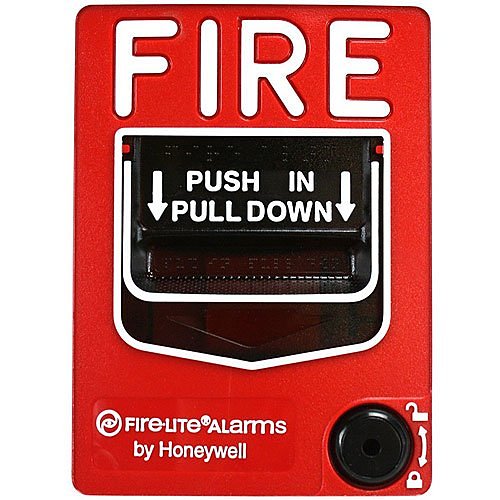

The Fire-Lite BG-12 is a dual-action manual pull station. It gives a fire alarm panel one manual alarm-initiating input. Furthermore, the dual action helps reduce accidental activation.
To activate, push in and then pull down on the handle. As a result, the word “ACTIVATED” appears on the station. It stays shown until a technician resets the station. Specifically, a hex-key reset returns it to normal.
Contacts and Wiring
The BG-12 uses a single SPST, normally open switch. In addition, the gold-plated contact is rated 0.25 A at 30 volts (AC or DC). Screw terminals make field wiring straightforward. Therefore, it connects easily to a conventional initiating device circuit.
ADA-Compliant Design
The station meets ADA operating guidelines. Specifically, it activates with a maximum 5-pound pull force. Also, operating instructions and Braille are molded into the handle. As a result, it supports accessible installations.
Key Features
- Dual-action design helps prevent accidental activation
- One normally open (N/O) alarm-initiating contact
- SPST gold-plated switch rated 0.25 A at 30 V (AC/DC)
- Screw-terminal connections
- “ACTIVATED” indication after operation
- Hex-key reset
- ADA-compliant: 5 lb max pull force, molded Braille instructions
- Indoor use
Order the Fire-Lite BG-12
Life Safety Consultants stocks the Fire-Lite BG-12 pull station. To confirm compatibility with your panel, contact our team.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 9 × 6 × 3 in |
| Condition | New |
| Manufacturers | Fire-Lite |
| Part Type | Pull Station |
