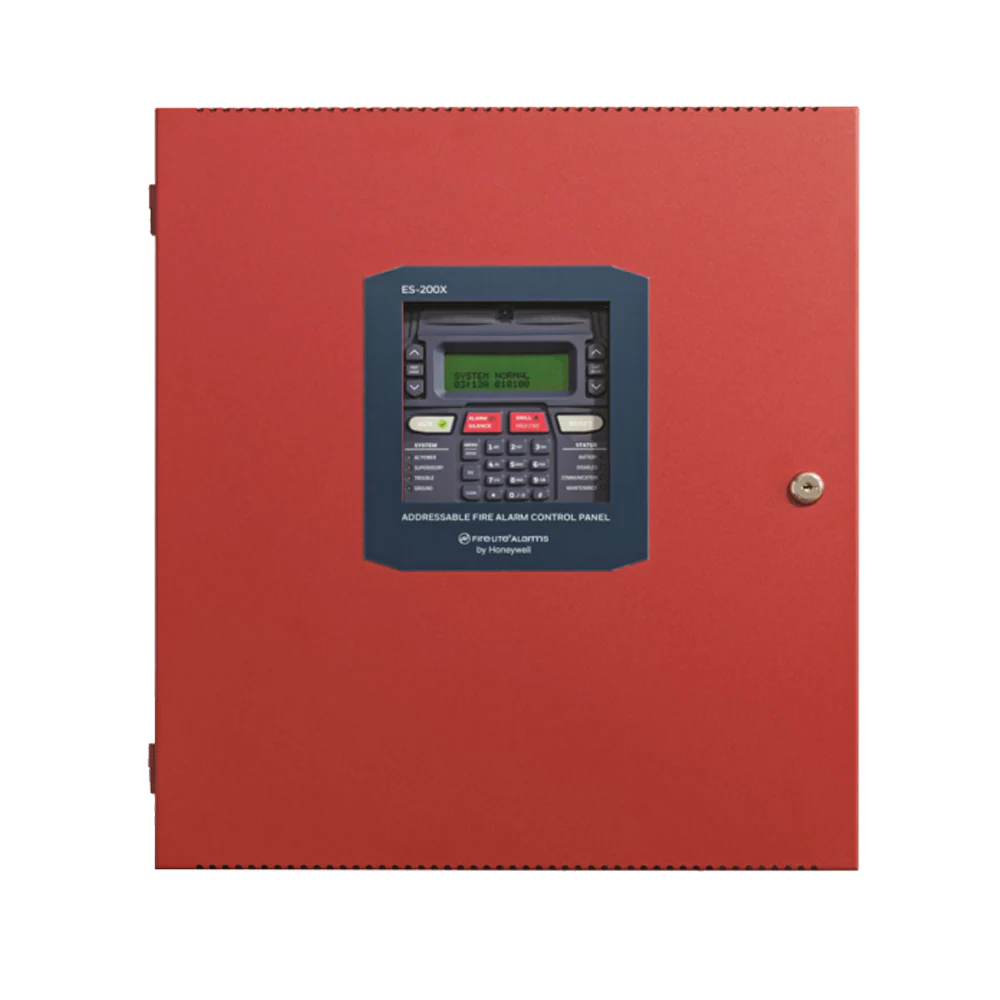

The Fire-Lite ES-200X is an intelligent addressable fire alarm control panel with a built-in communicator. Specifically, it supports up to 198 addressable devices on one SLC loop. As a result, it replaces the older MS-9200UDLS directly.
The 198 points split into 99 detectors and 99 modules. Therefore, one panel covers a substantial commercial building. In addition, it programs like Fire-Lite’s other addressable panels.
Fire-Lite ES-200X Communication and Outputs
A pre-installed IPOTS-COM communicator reports over both IP and telephone lines. Also, optional CELL-MOD or CELL-CAB-FL adds cellular reporting over AlarmNet. Furthermore, the panel can activate the ECC-50/100 Emergency Command Center.
The ES-200X provides four programmable Style Z (Class A) or Style Y (Class B) NAC circuits. Then, two programmable relays and one fixed trouble relay handle auxiliary functions. It also supports SWIFT wireless devices.
Fire-Lite ES-200X Specifications
- Up to 198 addressable points (99 detectors + 99 modules), one SLC loop
- Four programmable Style Z (Class A) / Style Y (Class B) NAC circuits
- Pre-installed IPOTS-COM IP/POTS communicator over AlarmNet
- Two programmable relays plus one fixed trouble relay
- 80-character backlit LCD; 1,000-event history
- Up to 16 ANN-BUS annunciators (8 per ANN-Bus)
- SWIFT wireless compatible
- Listed to UL 864, 10th edition
Order the Fire-Lite ES-200X
Life Safety Consultants stocks the Fire-Lite ES-200X addressable panel and compatible devices. To order or confirm compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 32.05 lbs |
|---|---|
| Dimensions | 26 × 22 × 8 in |
| Condition | New |
| Manufacturers | Fire-Lite |
| Part Type | Replacement Part |
