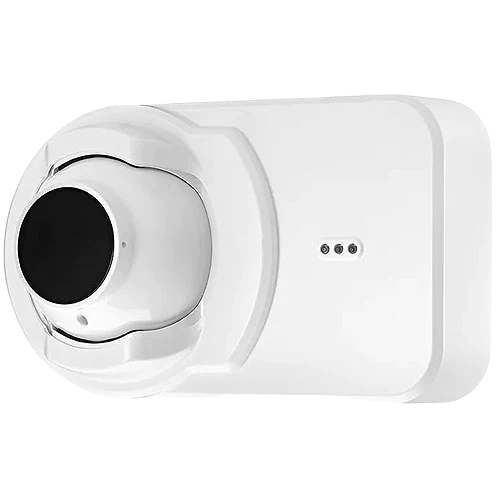

The Fire-Lite OSI-RI-FL is an intelligent single-ended reflective beam smoke detector. Specifically, it uses optical imaging to detect smoke across an open space. As a result, it protects large areas that spot detectors cannot cover well.
First, the detector projects an infrared beam toward a passive reflector. Then, smoke in the beam path reduces the returned signal. Therefore, the unit alarms on light obscuration rather than chamber sampling.
Where the Fire-Lite OSI-RI-FL Fits
The reflective design needs only one powered head plus a reflector. Therefore, a single connection sits at the head end. As a result, installation across long beam paths stays simpler. In addition, it suits warehouses, atriums, gymnasiums, and transit spaces.
The detector works with a listed control panel that provides separate four-wire power. Also, confirm the available beam path matches the listed range for this model.
Notes Before Ordering the Fire-Lite OSI-RI-FL
- Intelligent single-ended reflective imaging beam smoke detector
- One detector head plus one passive reflector
- Designed for large, open, high-ceiling spaces
- Requires a listed four-wire panel with separately supplied power
- The reflector is often ordered separately — confirm before installing
Order the Fire-Lite OSI-RI-FL
Life Safety Consultants stocks Fire-Lite beam smoke detectors. To order or confirm compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 9 × 11 × 7 in |
| Condition | New |
| Manufacturers | Xtralis |
| Part Type | Photoelectric Smoke Detector |
