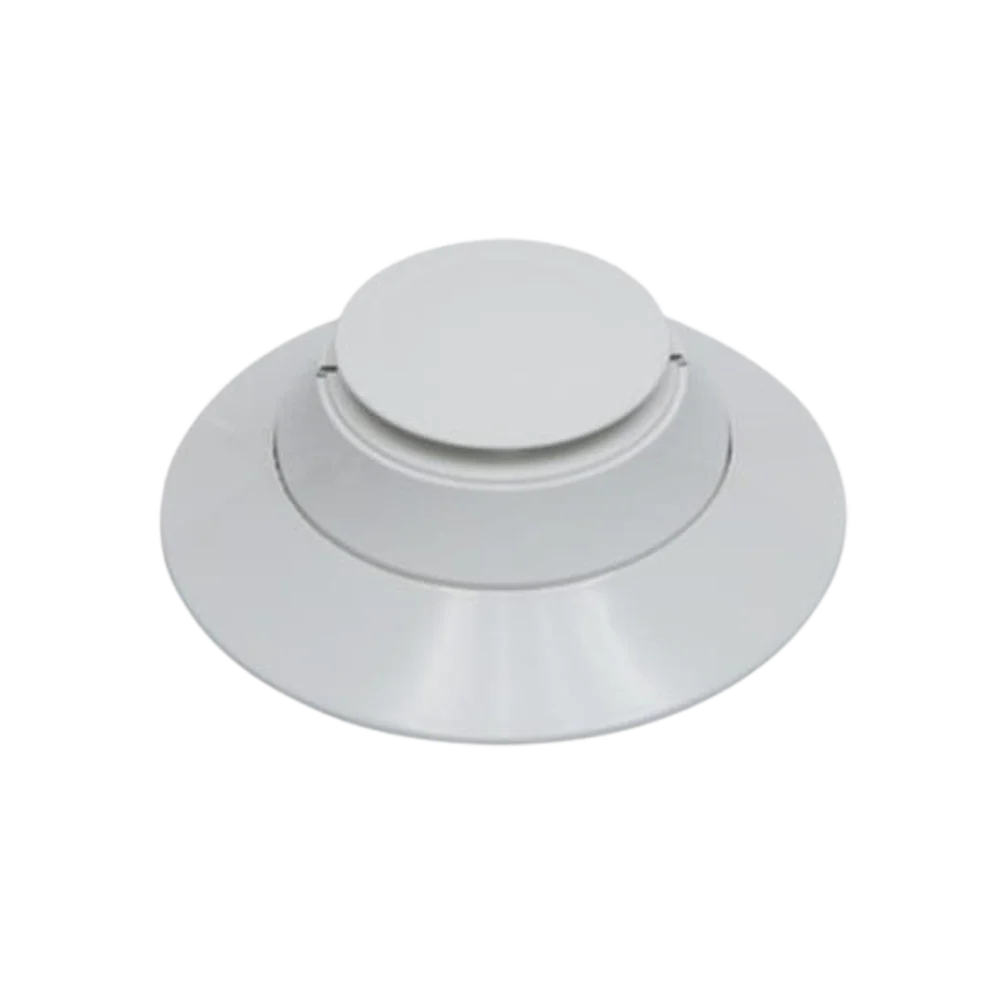

The Fire-Lite SD365R is an intelligent photoelectric smoke detector with remote test. It plugs into Fire-Lite addressable fire alarm panels. Specifically, it suits duct applications using System Sensor DNR and DNRW housings.
In addition, the SD365R reports its status continuously to the panel. As a result, technicians get fast, dependable smoke detection inside HVAC ductwork.
How the Fire-Lite SD365R Works
The detector uses an enhanced photoelectric sensing chamber. Therefore, it responds quickly to a broad range of fires. Also, it resists nuisance alarms from everyday airflow.
Furthermore, the SD365R supports LiteSpeed and CLIP communication. First, set the address with the rotary decimal switches. Then the panel can poll the device and run a remote test without ladder access.
Key Features
- Intelligent addressable communication on LiteSpeed and CLIP protocols
- Remote test feature activated from the fire alarm panel
- For use with System Sensor DNR and DNRW duct detector housings
- Rotary decimal addressing for simple point identification
- Two LEDs blink when polled and latch on alarm
- Built-in tamper-resistant locking feature
- UL 268 listed; meets NFPA 72 requirements
Specifications
- Protocol: LiteSpeed and CLIP (Fire-Lite addressable)
- Operating Voltage: 15-32 VDC peak from the SLC
- Standby Current: 200 microamps max average at 24 VDC (LED enabled)
- Alarm (“ON”) Current: 4.5 mA max at 24 VDC
- Addressing: Rotary, decimal
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 5.5 × 5 × 2 in |
| Condition | New |
| Manufacturers | Fire-Lite |
| Part Type | Photoelectric Smoke Detector |
