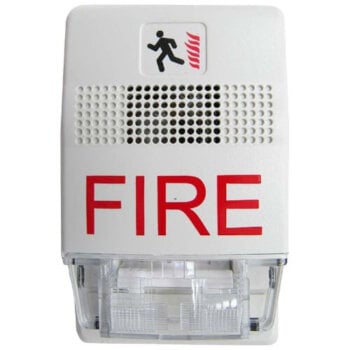

The Edwards G1F-CVM is a Genesis chime-strobe for commercial fire alarm systems. It combines a mellow audible chime with a multi-candela strobe. Moreover, the white housing carries “FIRE” marking for clear identification.
This appliance belongs to the compact Genesis series. Therefore, it delivers audible and visual notification in one low-profile unit. It suits offices, healthcare sites, schools, and similar spaces.
Selectable Candela Output
The strobe offers field-selectable output of 15, 30, 75, or 110 cd. As a result, you set the visual coverage to fit each room. In addition, a side switch locks the setting after install.
Chime Tone Options
With steady voltage, the chime pulses at 60 strokes per minute. Alternatively, you can field-configure it for temporal output. Furthermore, the chime offers selectable high or low dB output.
Installation
The G1F-CVM runs on 24VDC. Also, it mounts to a standard one-gang electrical box. The unit operates indoors between 32°F and 120°F.
Specifications
- Type: Genesis chime-strobe (audible + visual)
- Strobe output: selectable 15, 30, 75, or 110 cd
- Chime pattern: steady (60 strokes/min) or field-selectable temporal
- dB output: selectable high/low
- Operating voltage: 24VDC
- Housing: white, “FIRE” marked
- Mounting: standard one-gang box, indoor use
- Listings: UL 1971 (strobe), UL 464 (audible); ADA compliant
Order the Edwards G1F-CVM
Life Safety Consultants stocks the Edwards G1F-CVM and matching Genesis appliances. To order or confirm fit, contact our team by phone or email.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 3 × 2 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Strobe |
