The Gamewell LCD-SLP is a touchscreen annunciator for Smart Loop Panel systems. First, it gives operators a graphic view of fire alarm activity. Then it shows system events through indicating LEDs and on-screen controls. As a result, staff can read and manage the panel from one display.

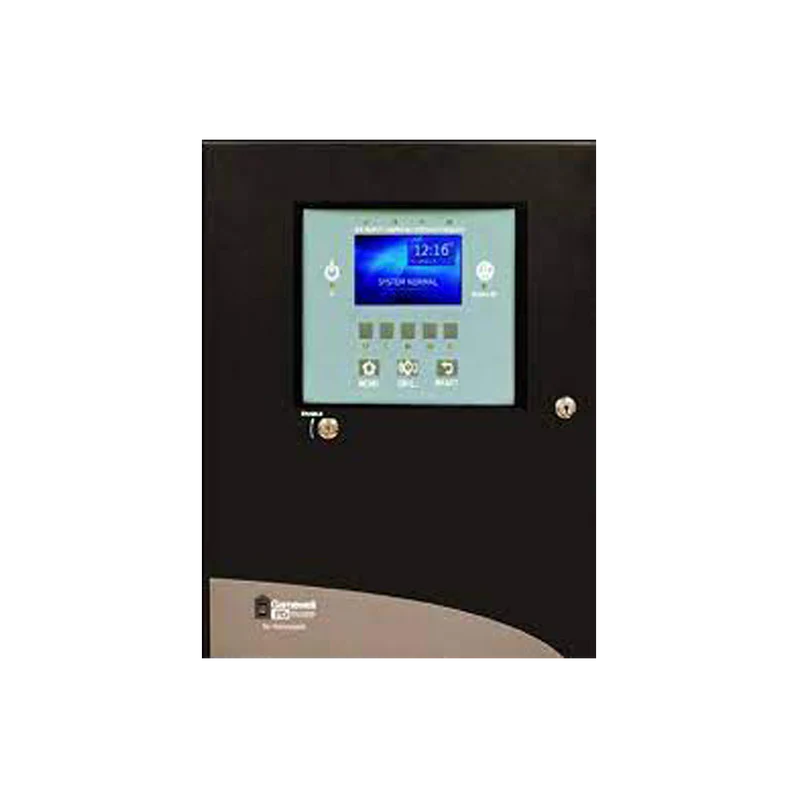

Gamewell LCD-SLP display and controls
The screen is a 4.3-inch diagonal color touchscreen. Specifically, it has 480 x 272 pixel resolution. In addition, it includes five custom function buttons with LEDs. These buttons give direct access to common system controls. The annunciator connects over an RS-485 serial interface. Therefore it can mount remotely from the main panel.
Specifications
- Type: touchscreen annunciator display
- Display: 4.3-inch diagonal color touchscreen, 480 x 272 pixels
- Controls: five custom function buttons with LEDs
- Interface: RS-485 serial
- Capacity: S3 Series (SLP) supports up to 15 LCD-SLP displays
- Systems: Gamewell-FCI S3 Series and E3 Series
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 16.01 lbs |
|---|---|
| Dimensions | 9 × 5 × 1.4 in |
| Condition | New |
| Manufacturers | Gamewell-FCI |
| Part Type | Module |
