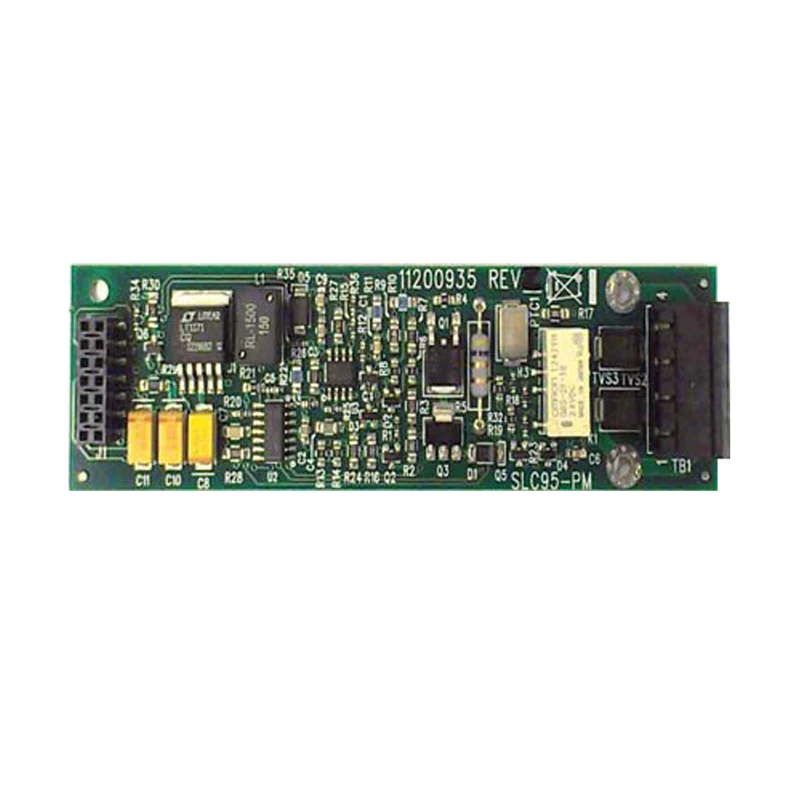

The Gamewell SLC95-PM is an add-on Signaling Line Circuit (SLC) module for Gamewell-FCI SLP-series fire alarm panels. First, it adds one SLC loop using the Apollo protocol. Then, that loop supports up to 126 Apollo XP95 devices. In addition, you can wire the loop as Class A or Class B.
How the Gamewell SLC95-PM expands a panel
The module plugs directly into the Smart Loop Panel main board (SLP-E3). As a result, technicians extend loop capacity without adding a separate cabinet. Furthermore, each addressable sensor and module on the loop reports to the control panel. Therefore, the SLC95-PM helps centralize device monitoring across the system.
Listings and applications
The SLC95-PM is listed to UL 864, 9th Edition. Also, it supports NFPA 72 fire alarm and signaling requirements. Specifically, it suits buildings that use Gamewell-FCI E3 Series control panels. For example, offices, schools, and healthcare facilities commonly use these systems.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 3.2 lbs |
|---|---|
| Dimensions | 2 × 6 × 4 in |
| Condition | New |
| Manufacturers | Gamewell-FCI |
| Part Type | Module |
