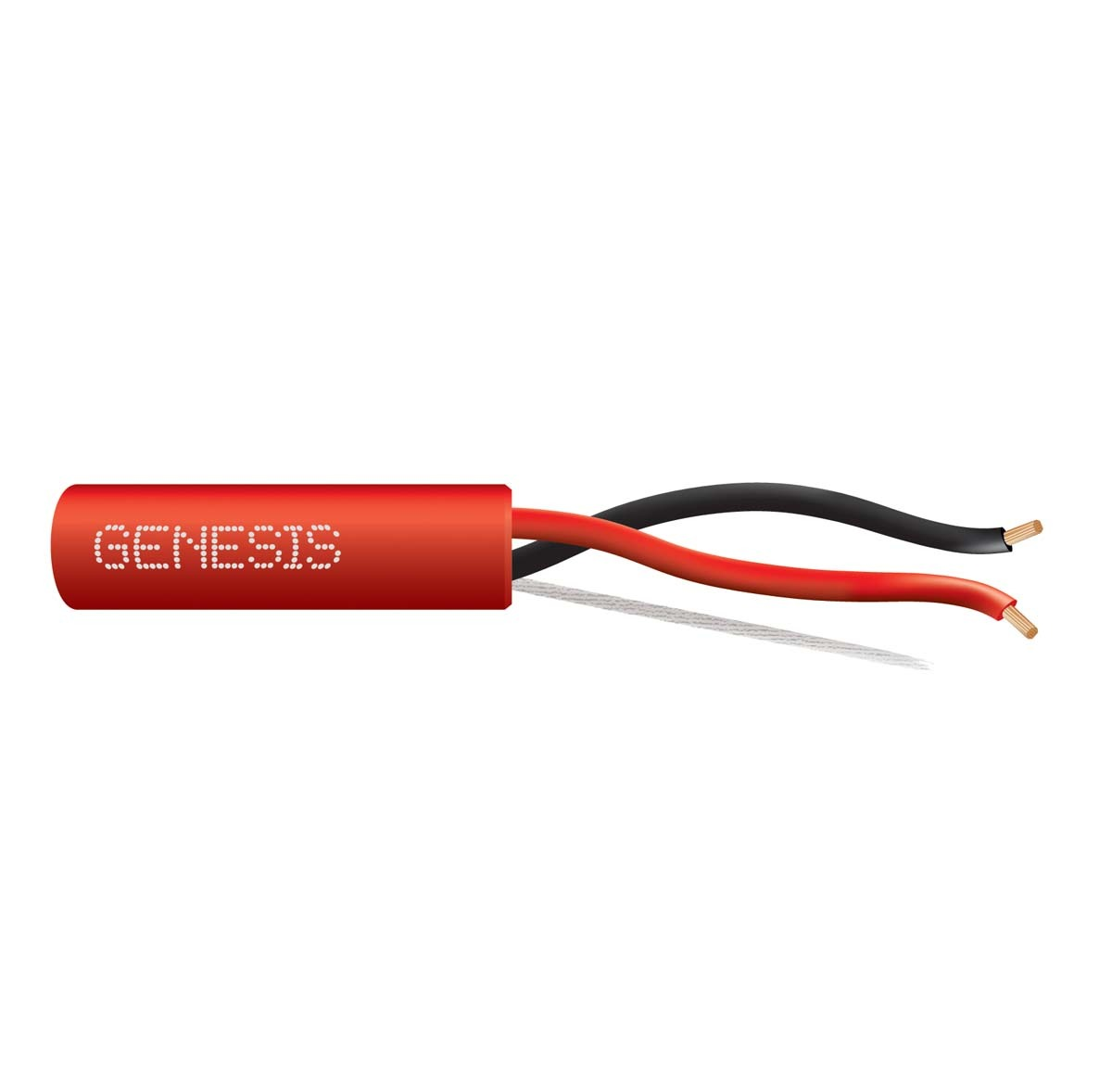

The Genesis 45221004 is a 14/2 stranded, unshielded, plenum-rated fire alarm cable. Specifically, it uses two 14 AWG stranded bare-copper conductors. In addition, it carries a 300-volt rating with a red jacket. Honeywell ships it on a 1,000-foot reel.
Genesis 45221004 construction and ratings
The stranded conductors stay flexible during pulls and terminations. As a result, this cable handles tight conduit bends well. Furthermore, it lists to FPLP, CL3P, and FT6 for plenum installations. Therefore, it can run in air-handling spaces. The red plenum PVC jacket meets NEC Article 760 requirements.
Typical applications
Installers use this cable for conventional and addressable fire alarm circuits. For example, it connects panels, pull stations, and notification appliances. However, always match gauge to the circuit load and local code. Finally, order by the full reel for larger jobs.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 38.5 lbs |
|---|---|
| Dimensions | 12 × 12 × 7 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Replacement Part |
