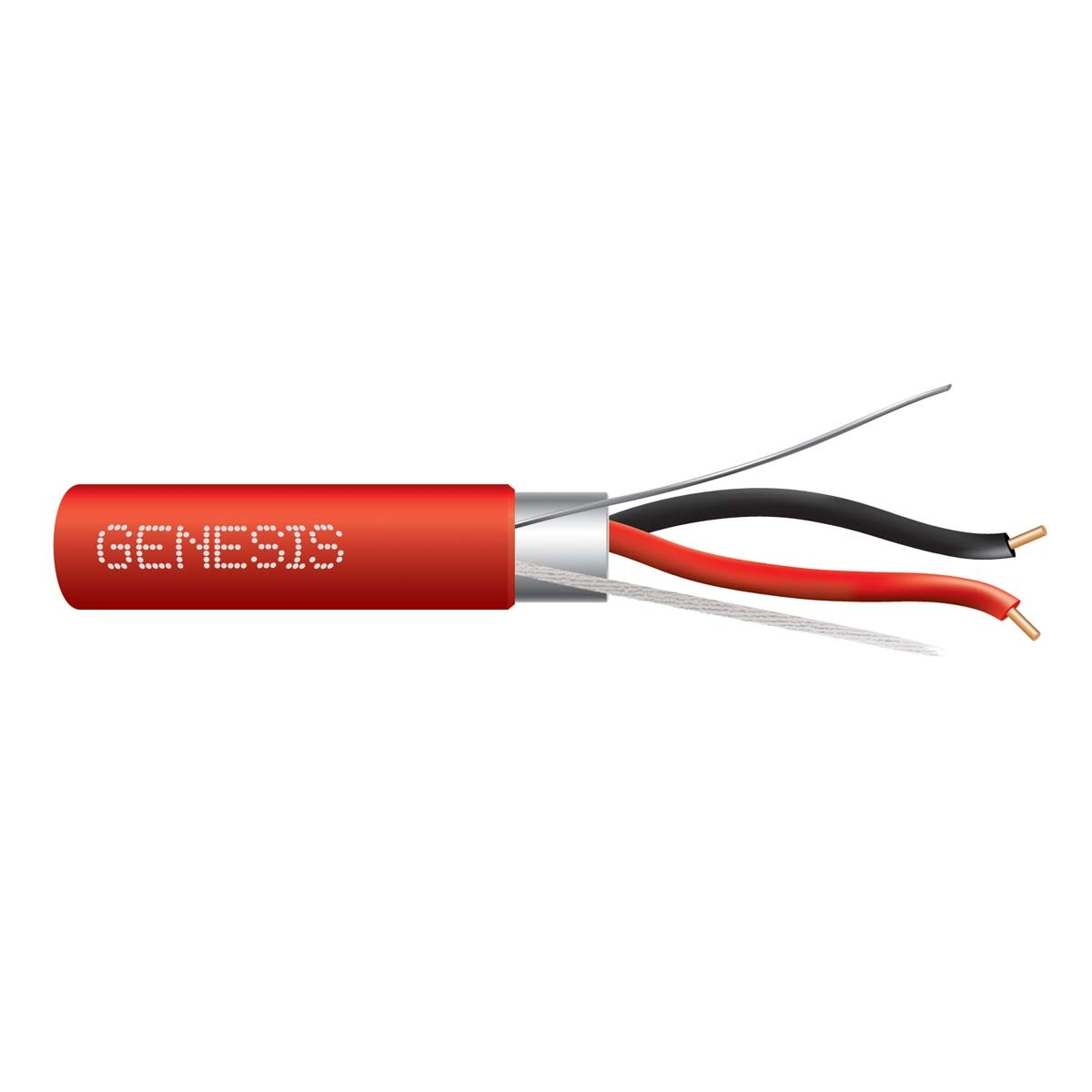

The Genesis 46021104 is an 18/2 solid, shielded, plenum-rated fire alarm cable. Specifically, it uses two 18 AWG solid bare-copper conductors. In addition, an overall aluminum-foil shield with a tinned-copper drain wire blocks interference. The cable carries a 300-volt rating with a red jacket.
Genesis 46021104 construction and ratings
The foil shield protects signal integrity on noisy circuits. As a result, this cable suits addressable and data-style fire alarm loops. Furthermore, it lists to FPLP, CL3P, and FT6 for plenum spaces. The plenum PVC jacket carries a temperature rating of -20°C to 75°C. Honeywell packages it in a 1,000-foot REELEX pull box.
Where it fits
Installers use shielded cable where interference could disrupt signaling. For example, runs near motors or large electrical loads benefit from shielding. However, always bond the drain wire per the panel manufacturer’s instructions. Finally, confirm the rating against your local code before installation.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 17.7 lbs |
|---|---|
| Dimensions | 12 × 8.5 × 12 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Replacement Part |
