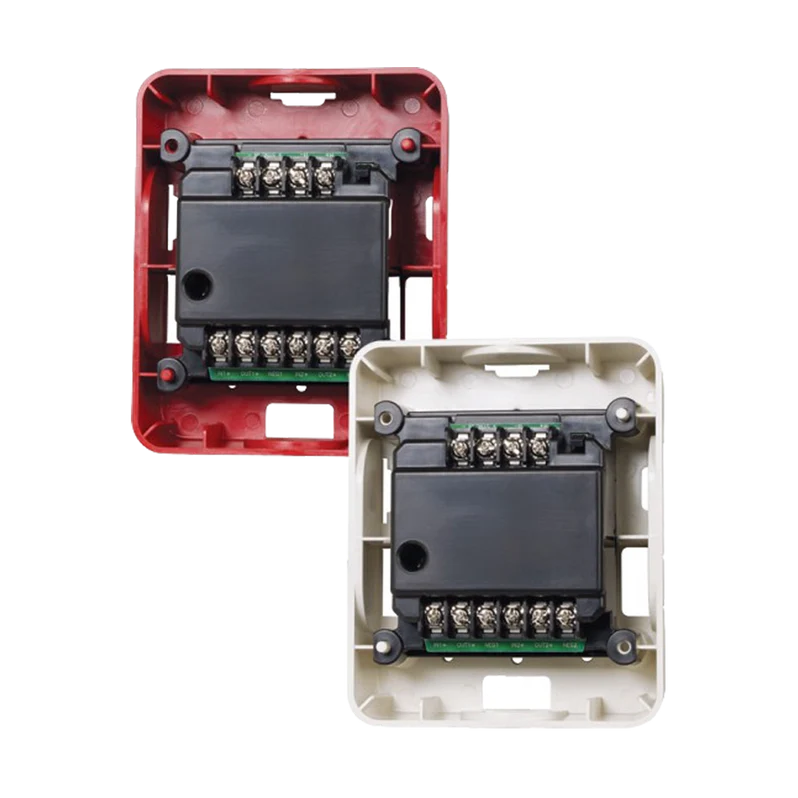

The Gentex AVSM-R is a gangable synchronization control module with a red faceplate. First, it synchronizes multiple horns, strobes, and horn/strobes using only two wires. In addition, it operates one Class A circuit or two Class B circuits. Each circuit is rated at 3 amps.
How the Gentex AVSM-R works
The module runs on 12 or 24 VDC notification appliance circuits. As a result, strobes flash in unison across a space. Furthermore, the module can silence the horns while strobes keep flashing. A green LED indicates module operation. The backbox and coverplate are included.
Listings and compatibility
The AVSM-R is listed to ANSI/UL 464, ANSI/UL 1971, and CAN/ULC. However, it is not for use with the ST or HS Series appliances. Therefore, confirm your devices before ordering. Specifically, this red module suits notification circuits that require synchronized flash.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 6 × 4.75 × 2.5 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Module |
