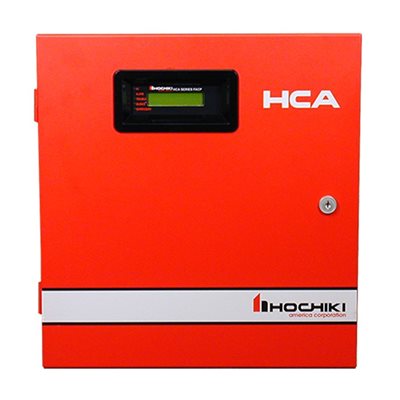

Hochiki (HCA-4/120V) 4 zone conventional facp, 6.5 amp, 120v, red

The Hochiki HCA-4/120V is a 4-zone conventional fire alarm control panel. First, it ships in the standard red enclosure with a 6.5-amp 24 VDC power supply. In addition, the AC input is switchable between 120 VAC and 240 VAC at 50 or 60 Hz.

Furthermore, the HCA-4 supports releasing of clean agent (FM-200, 3M Novec) and water (pre-action, deluge). As a result, it suits both straight detection jobs and small releasing systems.

Hochiki HCA-4/120V Key Features

• 4 conventional initiating zones
• 4 programmable supervised NAC outputs, 2.5 A @ 24 VDC each (special application, Class B)
• 5 programmable NAC output patterns with Gentex sync protocol built in
• 3 programmable general-purpose relays plus dedicated alarm and trouble relays
• 5 relay outputs total, 3 A @ 30 VDC
• Supports releasing of agents and water on the HCA-4
• 2-line x 16-character LCD with 15 control keys
• Event history log (256 events) with date/time stamp
• Built-in walk test
• Real time clock
• Single-board construction — flush or surface mount without a separate trim ring
• Supports one remote annunciator via RS-485

Specifications

• Supply voltage: 120 VAC or 240 VAC, 50/60 Hz (switchable)
• DC rating: 24 VDC @ 6.5 A
• Zones: 4
• Charger current: 0.98 A @ 22 VDC max
• Battery: 2 x 12 VDC, 18 Ah max
• Operating temperature: 32°F to 120°F (0°C to 49°C)
• Operating humidity: 95% non-condensing
• Dimensions: 14.57″ W x 15.47″ H x 4.41″ D (370 x 393 x 112 mm)
• Weight: 14 lbs (6.4 kg)
• Color: Red
• Listings: UL 864 9th Edition, USCG approved (non-dialer models), CSFM 7165-0410:183
