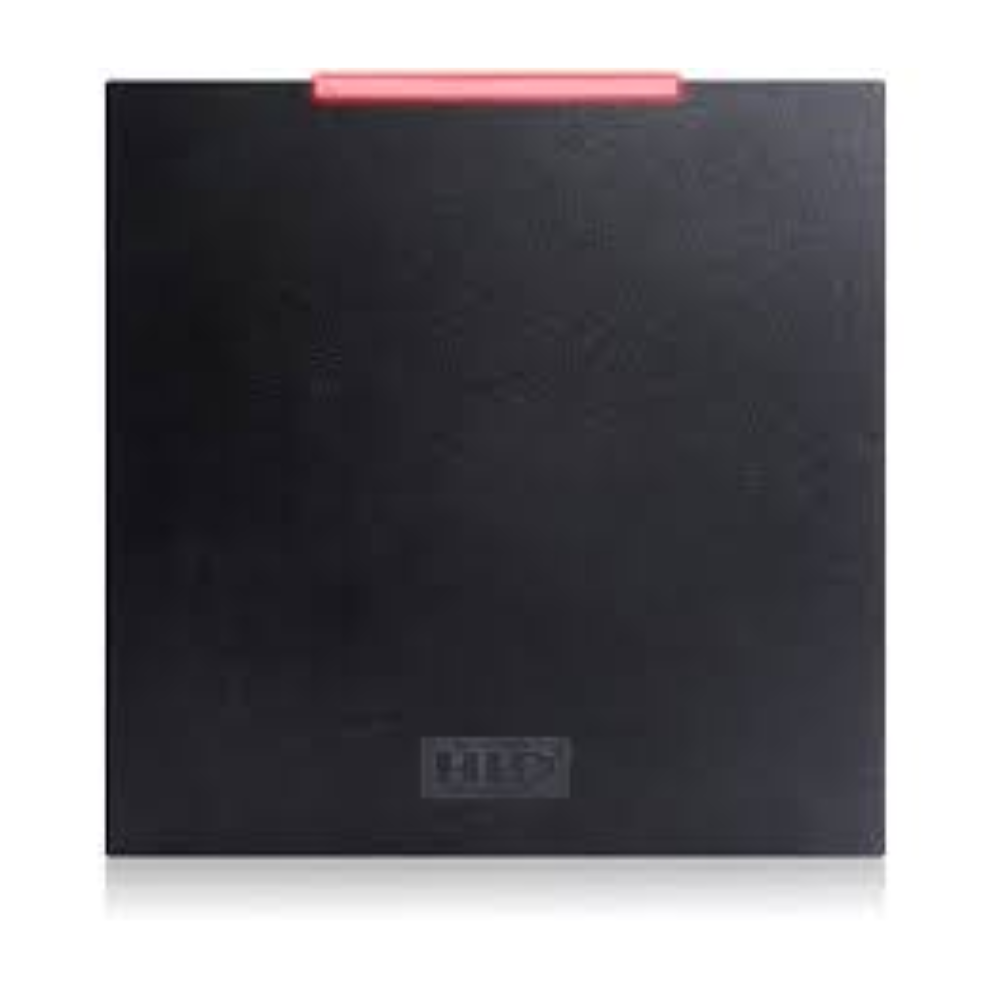

The HID (940NTNTEK00000) iCLASS SE R90 is a long-range contactless reader for vehicle and gate access. First, it reads 13.56 MHz smart credentials from up to about 14 inches. In addition, it supports iCLASS Seos, iCLASS SE, iCLASS, MIFARE Classic, and MIFARE DESFire EV1. As a result, drivers can present a credential without lowering a window.
Why choose the HID (940NTNTEK00000) R90
The R90 uses a large surface-mount housing built for extended read range. Therefore, it suits parking entries, gates, and perimeter lanes. This standard version reads smart cards only, with no 125 kHz prox. Also, it outputs Wiegand and supports OSDP for secure communication.
Key features
- Long read range up to roughly 14 inches (36 cm)
- 13.56 MHz smart credential support
- Surface or wall mountable
- Wiegand output with OSDP support
Specifications
- Read range: Up to ~14.17" (36 cm)
- Form factor: Large surface-mount panel
- Credentials: 13.56 MHz smart cards, no 125 kHz prox
- Interface: Wiegand, OSDP
- Listed to UL 294 (access control)
Want help planning a long-range reader install? Then contact the Life Safety Consultants team. Call (888) 557-0558, or email sales@lifesafetycom.com.
Additional information
| Weight | 4.27 lbs |
|---|---|
| Dimensions | 13.1 × 1.55 × 13.1 in |
| Condition | New |
| Manufacturers | Sargent & Greenleaf |
| Part Type | Replacement Part |
