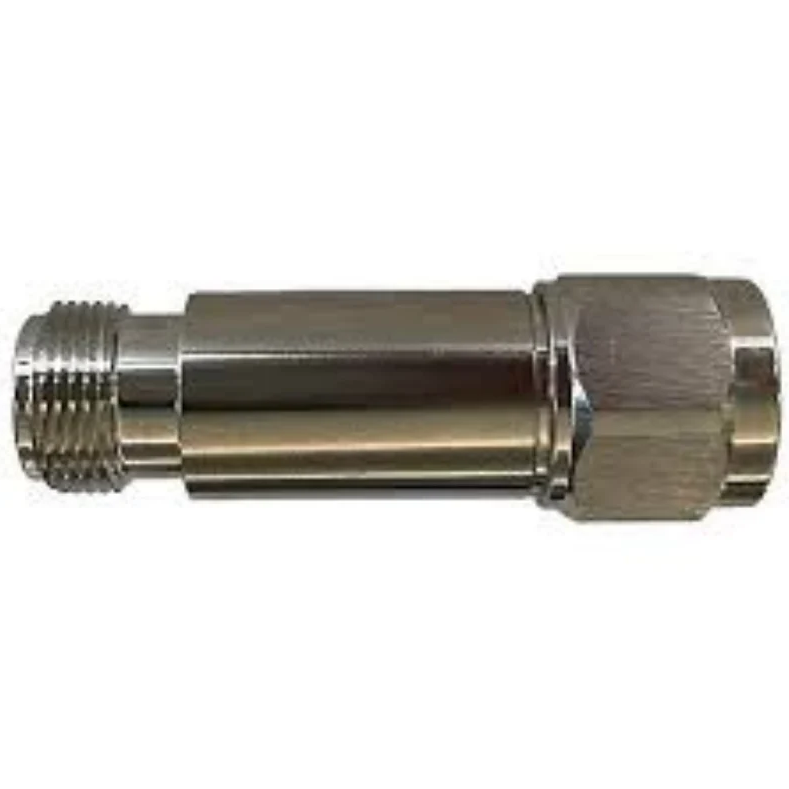

The Honeywell BDA-NATTEN-0503 is a passive coaxial attenuator for public-safety radio systems. First, it reduces RF signal level by a fixed amount. In addition, it uses rugged N-type connectors for reliable coaxial connections. As a result, it helps balance signal strength in a bi-directional amplifier (BDA) or DAS.
Why choose the Honeywell BDA-NATTEN-0503
This attenuator handles up to 5 watts of power. Therefore, it suits in-building public-safety communication networks. It presents a 50-ohm nominal impedance across a wide frequency range. Also, its compact inline design installs easily between coaxial components.
Key features
- Passive 5 W coaxial attenuator
- 3 dB nominal attenuation
- N-type connectors
- 50-ohm design for BDA and DAS networks
Specifications
- Attenuation: 3 dB (nominal)
- Power rating: 5 W
- Connectors: N-type
- Impedance: 50 ohms nominal
Need help sizing attenuators for a BDA or DAS? Then contact the Life Safety Consultants team. Call (888) 557-0558, or email sales@lifesafetycom.com.
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 3 × 4 × 3 in |
| Condition | New |
| Manufacturers | Honeywell |
| Part Type | Replacement Part |
