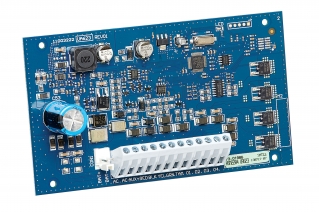

The DSC HSM2204 is a high-current output module for PowerSeries Neo and Pro panels. Specifically, it adds power and four programmable outputs to the system. As a result, it drives sirens, strobes, and other high-current loads.
Each module supplies up to 1 amp at 12 VDC from its auxiliary output. In addition, four programmable high-current outputs control external devices.
DSC HSM2204 Supervision
The module is fully supervised for AC failure, low battery, and aux failure. Therefore, the panel flags power problems quickly. Also, a dedicated transformer feeds the module for reliable output.
The HSM2204 works with all PowerSeries Neo control panels. Furthermore, it helps expand panel PGM outputs as a site grows.
Key Features
- Four programmable high-current outputs
- Up to 1 A at 12 VDC auxiliary output
- Fully supervised: AC failure, low battery, aux failure
- Compatible with all PowerSeries Neo panels
- Helps expand system PGM outputs
Specifications
- Transformer secondary: 16.5 VAC, 40 VA
- Board current draw: 40 mA max
- Operating temperature: -10C to +55C (14F to 131F)
- Humidity: 5 to 93% RH
- Board size: 145 x 83 mm
Order the DSC HSM2204 from Life Safety Consultants
Do you need the DSC HSM2204? Then call our team at 1-888-557-0558. Alternatively, email sales@lifesafetycom.com. As a result, you get fast answers on compatibility and pricing.
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 7 × 4 × 3 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Power Supply |
