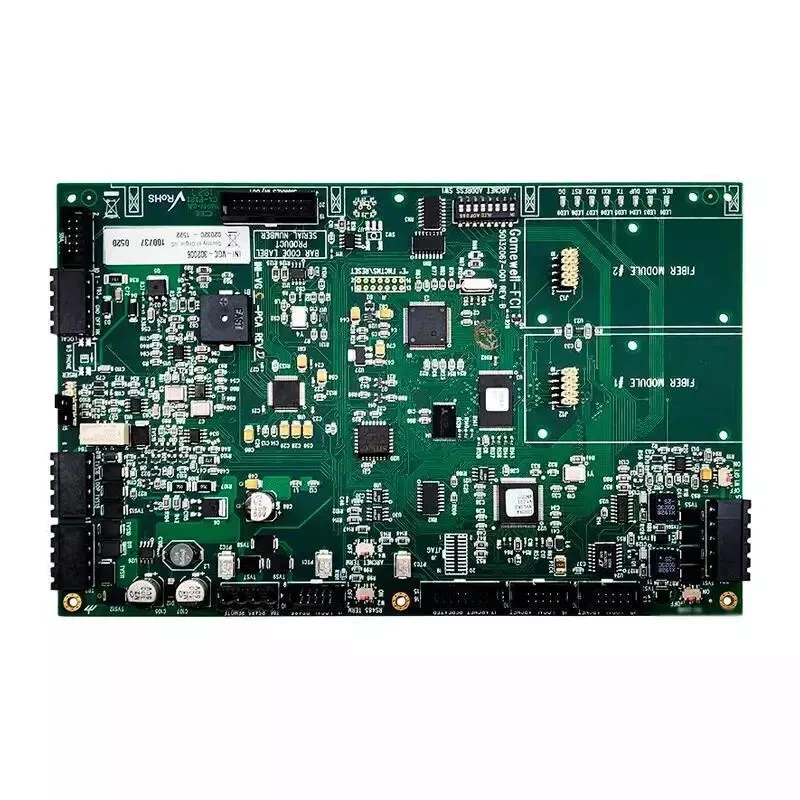

The Gamewell INI-VGC is the Intelligent Network Interface Voice Gateway for the INCC Command Center. First, it replaces the legacy 1100-1322 module. In addition, the INI-VGC occupies a single node on the E3 broadband network. As a result, the gateway brings voice, switch, LED, and firefighter telephone capability onto the E3 fabric from one card.
Gamewell INI-VGC capabilities
Each INI-VGC supports up to 16 ANU-48 LED Driver Modules or ASM-16 switch modules. Furthermore, that scales out to 256 fully programmable switches and 768 LEDs in red, yellow, and green. Therefore, large command centers can be driven from a single INI-VGC node.
Also, the module provides connections for an optional firefighter telephone handset. In addition, the INI-VGC is a fully digital voice and tone generator that uses DSP technology to produce the audio signal.
Network and wiring
The INI-VGC connects via a single pair of unshielded twisted pair (UTP), fiber-optic cable, or any combination of the two. Furthermore, it operates at the E3 broadband data rate of 625K baud. However, the fiber path requires separate fiber modules; specify the FML-E3 and/or FSL-E3 as needed.
Specifications
- Manufacturer: Gamewell-FCI (Honeywell)
- Model: INI-VGC (Intelligent Network Interface Voice Gateway, Command Center)
- Replaces: 1100-1322
- Operating voltage: 24 VDC nominal (from PM-9 or PM-9G power supply)
- Operating current: 0.150 A
- Operating temperature: 32°F to 120°F (0°C to 49°C)
- Network: single node on E3 broadband network at 625K baud
- Wiring: unshielded twisted pair, fiber-optic, or combination
- Fiber modules: FML-E3 and/or FSL-E3 (sold separately)
- Switch/LED capacity: up to 16 ANU-48 or ASM-16 modules (256 switches / 768 LEDs)
- Audio: fully digital DSP voice and tone generator
- Firefighter telephone: connection for optional handset
- Source documentation: Honeywell datasheet 9020-0648 (INI-VG Series)
Order the Gamewell INI-VGC from Life Safety Consultants
Specify the INI-VGC for INCC Command Center voice gateway service. Also, Life Safety Consultants stocks the matching PM-9 power supply, ANU-48 and ASM-16 modules, and FML-E3 / FSL-E3 fiber modules.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 5.34 lbs |
|---|---|
| Dimensions | 12 × 10 × 4 in |
| Condition | New |
| Manufacturers | Gamewell-FCI |
| Part Type | Module |
