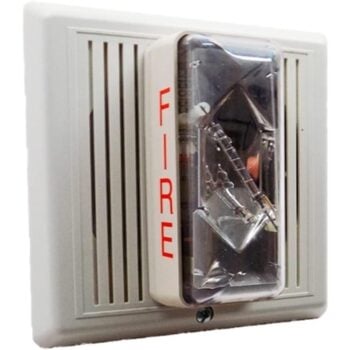

The Edwards INT-7ATW is a 15/75 cd temporal horn/strobe for fire alarm notification. It mounts on the wall in white, with a standard “FIRE” lens marking.
First, the audible delivers the NFPA 72 temporal-three pattern. Specifically, the cycle is 0.5 s on, 0.5 s off, 0.5 s on, 0.5 s off, 0.5 s on, then 1.5 s off, repeating. As a result, occupants hear the universal fire-evacuation tone.
In addition, the strobe is UL 1971 listed at 15 cd. However, the on-axis intensity reaches 75 cd per ADA and UL 1638. Therefore, designers can use it in spaces where the 15 cd rating is required but higher peak output is desirable.
Key Features of the Edwards INT-7ATW
- 15/75 cd temporal horn/strobe in a single appliance
- White housing with “FIRE” wall-mount lens marking (standard)
- Constant-voltage operation across 16 to 33 VDC
- Fire-retardant, high-impact plastic housing with textured finish
- Terminals accept up to #12 AWG for polarized in/out wiring
- UL 1971, UL 464, and UL 1638 listed
Installation Notes
The INT-7ATW connects to signal circuits that supply constant (not pulsed) DC voltage. Then, a single mounting screw holds the appliance to its mounting plate. Optional Lens Marking Kits are available for ceiling orientation or alternate languages.
Order the Edwards INT-7ATW
Since 2002, Life Safety Consultants has supplied genuine Edwards|Kidde notification appliances. To order or get application help, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 5.5 × 4.5 × 4.5 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Smoke Detector |
