The Kidde EVOLVE-SLC-250 is a single-loop SLC expansion card for the Evolve Series fire alarm panel. It adds one 250-address device loop to the EVOLVE-ML. First, the card extends panel capacity for larger systems. As a result, you grow coverage without replacing the panel.

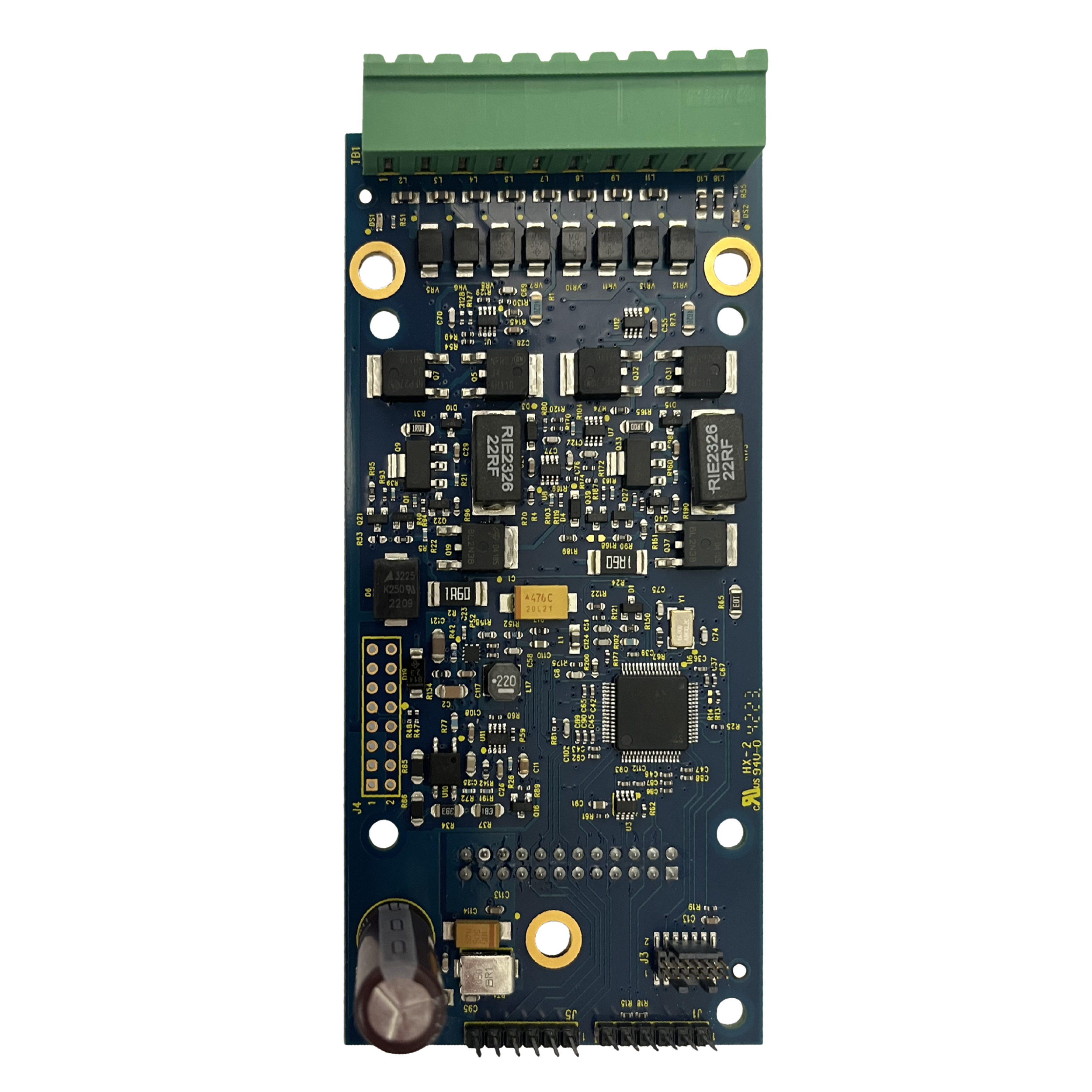

Kidde EVOLVE-SLC-250 expansion card
The loop supports up to 125 detectors and 125 modules. Also, it wires as Class A or Class B. In addition, the card operates at 24 VDC. Therefore, it integrates cleanly with the EVOLVE-ML control panel.
Loop specifications
A fully loaded loop draws about 65 mA in standby and 86 mA in alarm. Furthermore, the communication line runs at a maximum of 21 volts peak-to-peak. The loop also supports up to 64 isolators. Finally, the card operates from 32°F to 120°F at up to 93% noncondensing humidity.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 12 × 4.5 × 3.5 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Strobe |
