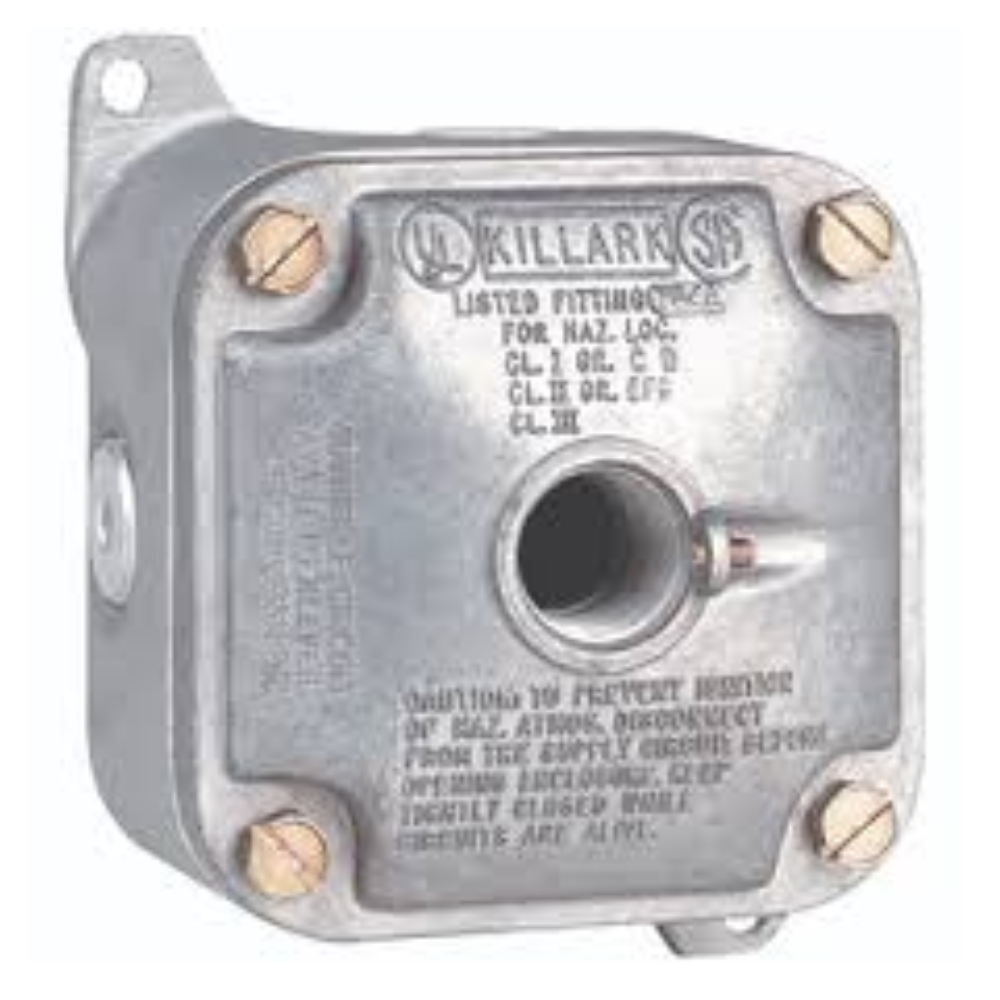

The KILLARK JALX11 is an explosion-proof aluminum outlet body with cover and 1/2-inch threaded hubs. Specifically, it is from the Killark JALX Series. Manufactured by Hubbell-Killark, it is widely sold under the Edwards/Kidde 302 Series brand as a mounting enclosure for hazardous-location fire alarm devices.
First, the JALX11 provides a copper-free aluminum housing rated for Class I, Division 1 and 2 locations. Then, four 1/2-inch threaded conduit hubs arranged in an “X” configuration allow flexible wiring. As a result, it serves as a code-compliant junction box where flammable gases or vapors may be present.
In addition, fire alarm contractors commonly use the JALX11 as the mounting box for Edwards 302 Series rate-compensation heat detectors. Furthermore, it is also approved for general explosion-proof junction and outlet applications. Therefore, it is a versatile enclosure for hazardous-location fire and life safety installations.
Key Features of the KILLARK JALX11 Explosion-Proof Outlet Body
- Copper-free aluminum body with hub-style cover
- Four 1/2-inch threaded conduit hubs in an “X” pattern (back and four sides)
- Three close-up plugs included for unused hubs
- Cast mounting lugs for surface mounting
- Internal ground screw provided
- Hub cover with set screws for fixture-stem locking
- Large interior wiring area
- Natural aluminum finish
- Listed for Class I, Division 1 and 2 hazardous locations
- Sold by Edwards Signaling as the 302-series detector mounting box
Specifications
- Material: copper-free cast aluminum
- Finish: natural
- Hub size (box and cover): 1/2 in NPT
- Hub configuration: 4 hubs back and sides plus 1 cover hub
- Approximate dimensions: 6.5 × 5.75 × 4.75 in (L × W × H)
- Mounting: surface (cast lugs)
- Ground: internal ground screw
- Hazardous-location listing: Class I, Div 1 & 2
- Manufacturer: Hubbell-Killark (Killark Series JALX)
Typical Applications
- Mounting box for Edwards 302 Series rate-compensation heat detectors
- Explosion-proof junction box for hazardous-location wiring
- Outlet body for fixture stems in classified industrial areas
