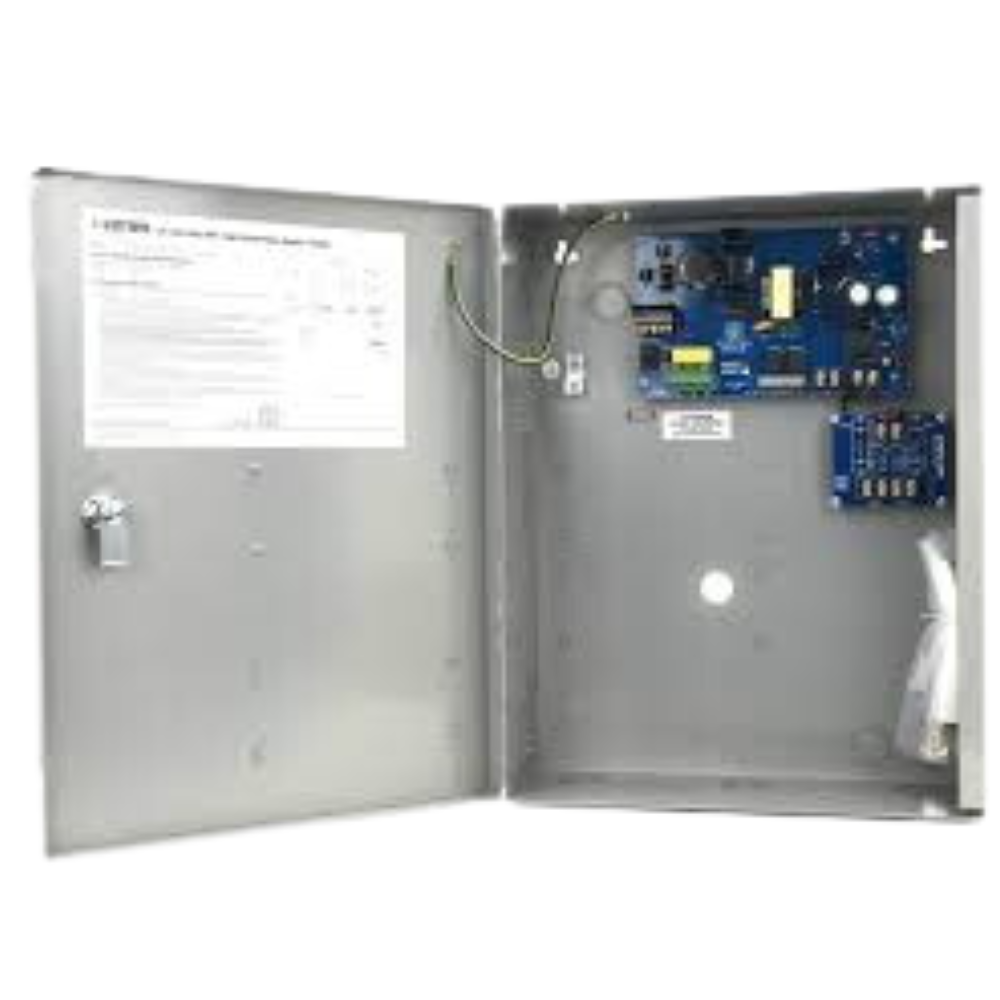

The Lenel LNL-OLS120ACTXP2 is a 4.0 A power supply with enclosure for LenelS2 OnGuard access control systems. Specifically, it powers controllers, reader interface modules, and door hardware. Therefore, it delivers regulated DC power for an access control branch.
First, the supply accepts 115 or 230 VAC input with automatic conversion. In addition, it outputs a continuous 4 A at either 12 or 24 VDC. As a result, one model fits most OnGuard voltage requirements.
What the Lenel LNL-OLS120ACTXP2 Powers
The unit ships with a power distribution board. Furthermore, that board provides two protected 2 A outputs. Therefore, integrators can feed separate loads from one supply. In addition, the steel enclosure protects the supply and its battery in the field.
Key Features
- 4.0 A power supply with enclosure for LenelS2 OnGuard
- Auto-converting 115/230 VAC input
- Continuous 4 A output, selectable 12 or 24 VDC
- Power distribution board with two 2 A outputs
- Battery charging for standby backup
- Steel enclosure for field installation
Specifications
- Type: filtered, regulated power supply with enclosure
- AC input: 115/230 VAC, auto-converting
- DC output: 4 A continuous at 12 or 24 VDC
- Distribution: on-board board with two 2 A outputs
- Backup: integral battery charging
Order or Get Application Help
Life Safety Consultants stocks LenelS2 power supplies for OnGuard systems. To order the Lenel LNL-OLS120ACTXP2 or to size power for your panel and locks, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 3 × 4 × 3 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Power Supply |
