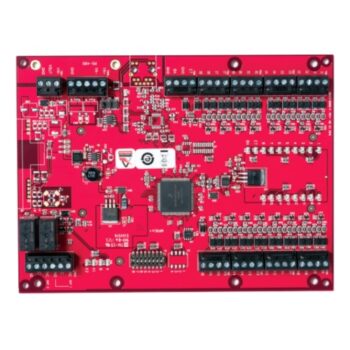

Lenel (LNL-1100-S3) Security alarm input control module board, series 3

The Lenel LNL-1100-S3 is a Series 3 Input Control Module for the LenelS2 OnGuard access control platform. Specifically, it provides 16 supervised input points and 2 Form-C output relays for monitored areas.

First, the ICM gives an Intelligent System Controller high-speed acknowledgement of critical alarm points. Then, it reports input state changes back to the ISC over RS-485. As a result, integrators can extend door, tamper, and auxiliary monitoring without adding controllers.

In addition, every input supports normally open, normally closed, supervised, and non-supervised circuits. Therefore, designers can match input wiring to existing devices on a retrofit. Furthermore, standard end-of-line resistors are 1K/1K ohm, 1%, 1/4 watt.

Lenel LNL-1100-S3 Key Features

• 16 configurable supervised input points
• 2 Form-C output relays rated 5 A at 28 VDC, resistive
• Supports Grade A, B, and AA line supervision
• 2-wire or 4-wire RS-485 communication to the Intelligent System Controller
• DIP-switch selectable addressing
• Status LEDs for communication, heartbeat, and relay state
• Replaces the older Series 2 LNL-1100 with one-to-one compatibility

Electrical and Physical Specifications

• Primary power: 12 to 24 VDC ±10%
• Maximum current draw: 350 mA
• Standard end-of-line resistors: 1K/1K ohm, 1%, 1/4 W
• RS-485 wiring: 24 AWG twisted pair with shield, 120 ohm impedance
• Maximum RS-485 cable run: 4,000 ft (1,219 m)
• Dimensions: 6 x 8 x 1 in (152 x 203 x 25.4 mm)
• Weight: 9 oz (255 g)

System Compatibility

First, the LNL-1100-S3 works with current LenelS2 Intelligent System Controllers such as the LNL-3300 and LNL-X-Series. In addition, it interoperates with other Series 3 modules including the LNL-1200-S3 output board and LNL-1320-S3 dual reader board.

Order or Get Application Help

Life Safety Consultants stocks Lenel Series 3 controllers and modules for access control retrofits and expansions. To order the Lenel LNL-1100-S3 or to confirm compatibility with your OnGuard install, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
