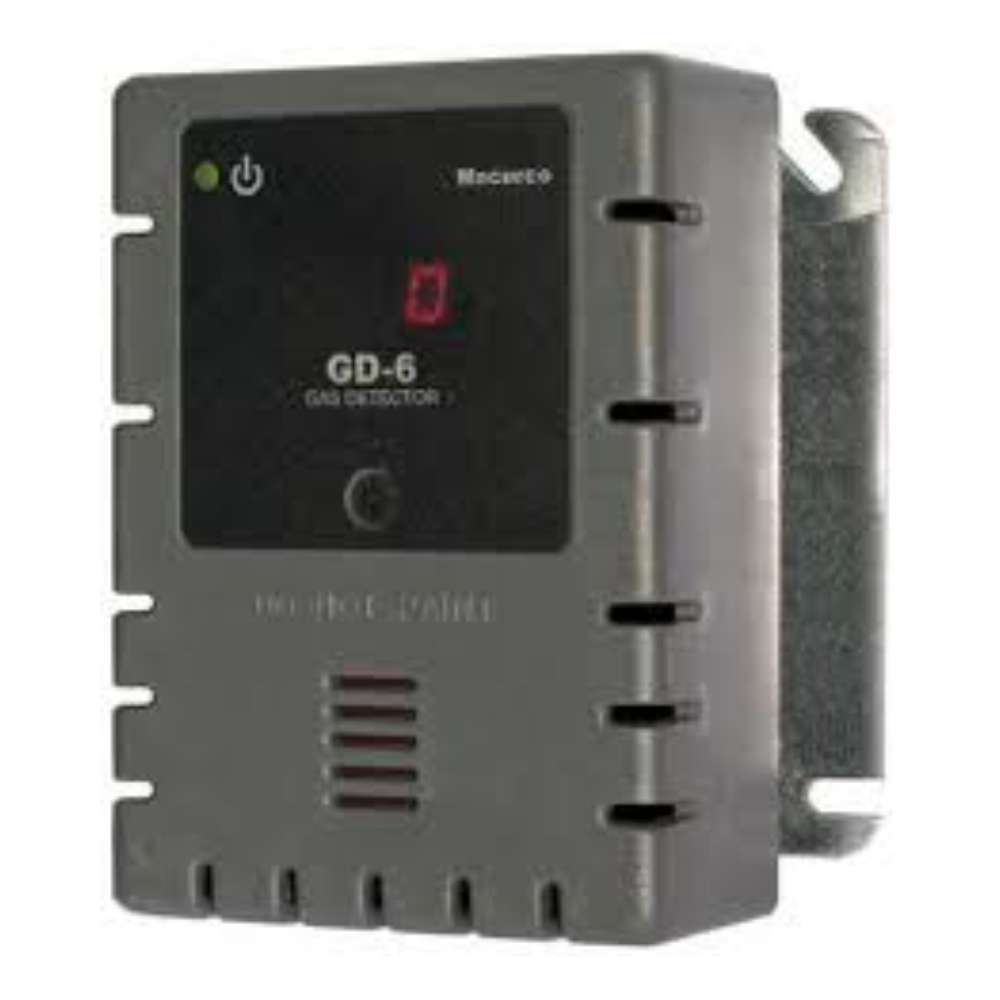

Macurco GD-6 Combustible Gas Detector

The Macurco GD-6 is a fixed combustible gas detector, controller, and transducer. It monitors for methane (NG), propane (LP), or hydrogen (H2). As a result, it warns of combustible gas buildup before it becomes dangerous. The gray housing suits commercial and industrial spaces.

This single unit detects, displays, and controls. First, it measures gas from 0 to 50% of the Lower Explosive Limit (LEL). Then it drives relays and a 4-20mA signal. Therefore, it can run fans, trigger alarms, and report to a control panel.

Macurco GD-6 specifications

• Target gases: methane (NG), propane (LP), or hydrogen (H2)
• Range: 0–50% LEL
• Power: 12–24 VAC or 12–32 VDC
• Outputs: 5 A SPDT fan relay, 0.5 A alarm relay, 4–20 mA
• Mounting: standard 4″ x 4″ electrical box
• Listing: ETL Listed to UL 61010-1

Use the fan relay for valves, louvers, or exhaust fans. In addition, wire the alarm relay to warning devices or a control panel. Specifically, the GD-6 fits mechanical rooms, parking areas, and process spaces.
