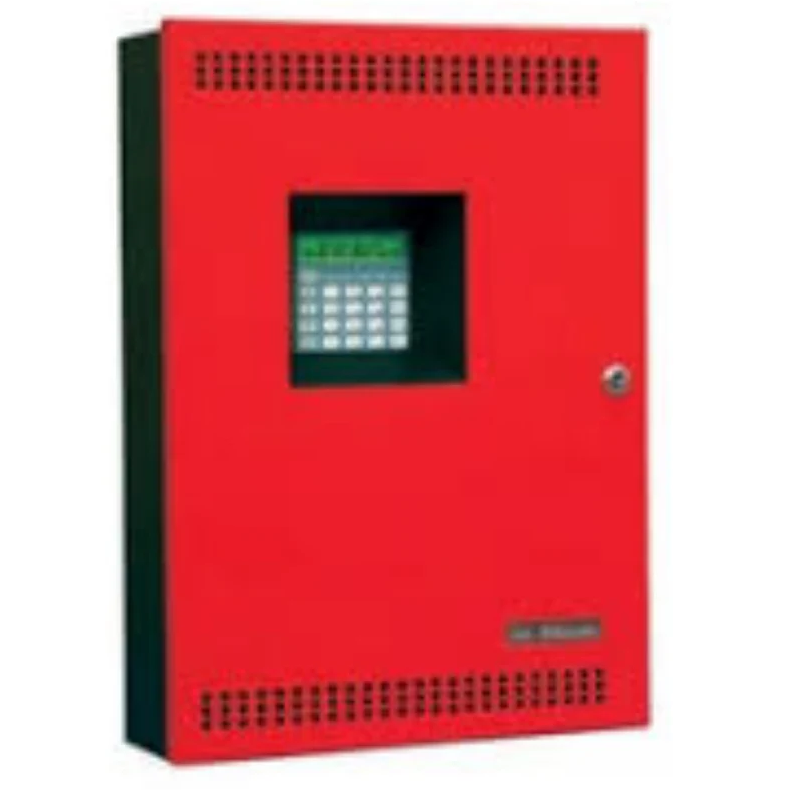

Mircom FA-300-6DDR-CG Marine Fire Alarm Control Unit
The Mircom FA-300-6DDR-CG is a six-zone marine fire alarm control unit. The United States Coast Guard approves it for indoor marine use. As a result, it suits vessels and marine facilities that need listed fire protection. A backlit LCD shows clear system status.
This control unit drives detection and notification on six zones. First, six Class B (Style B) initiating circuits connect the detectors. Then two Class B (Style Y) notification circuits power the signals, rated 1.7 A maximum. In addition, optional Class A converter modules are available.
Mircom FA-300-6DDR-CG features
- Six-zone conventional fire alarm control unit
- USCG-approved for indoor marine applications
- 40-character backlit LCD and numeric keypad
- Integrated UDACT digital communicator
- Six Class B (Style B) initiating circuits
- Two Class B (Style Y) notification circuits, 1.7 A max
- RS-485 interface for remote LCD or LED annunciators
Therefore, the panel reports alarms and faults at a glance. For example, the RS-485 port adds remote annunciators where needed.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 29.88 lbs |
|---|---|
| Dimensions | 16 × 16 × 16 in |
| Condition | New |
| Manufacturers | Mircom |
| Part Type | Annunciator |
