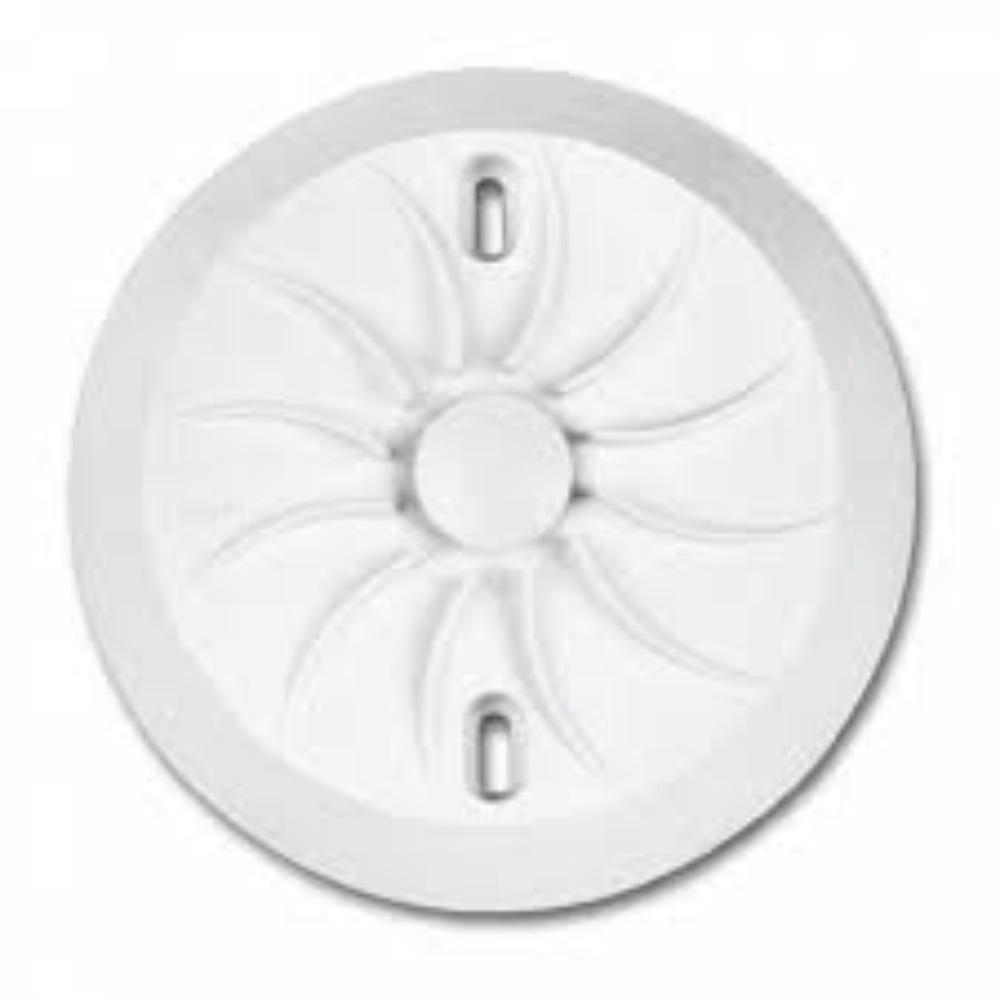

The Mircom TD-135 is a fixed-temperature heat detector. It activates at 135°F (57°C) to signal a developing fire. Because it is self-restoring, it resets once temperatures drop.
This detector uses a bi-metal disc as its heat-sensing element. In alarm, it closes a normally open contact. Then the contact returns to normal as the air cools.
Where the Mircom TD-135 Works Best
First, the TD-135 suits spaces where smoke detectors face nuisance alarms. For example, it fits mechanical rooms and similar areas. As a result, it adds reliable heat-based detection.
Each detector covers about 225 square feet. Specifically, use 15-foot center spacing and mount 7.5 feet from walls. In addition, the low-profile housing fits any standard octagon or square electrical box.
Key Features
- Fixed-temperature activation at 135°F (57°C)
- Self-restoring design resets after the alarm clears
- Bi-metal disc heat-sensing element
- Normally open contact closes on alarm
- 225 sq ft coverage; 15 ft spacing; 7.5 ft from walls
- Low-profile, fire-resistant thermoplastic housing
- Fits standard octagon or square electrical boxes; protrudes no more than 1 inch
- ULC Listed
Order the Mircom TD-135
Life Safety Consultants stocks the Mircom TD-135 fixed-temperature heat detector. To order or confirm spacing for your layout, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 0.75 × 3.5 × 5.5 in |
| Condition | New |
| Manufacturers | Mircom |
| Part Type | Replacement Part |
