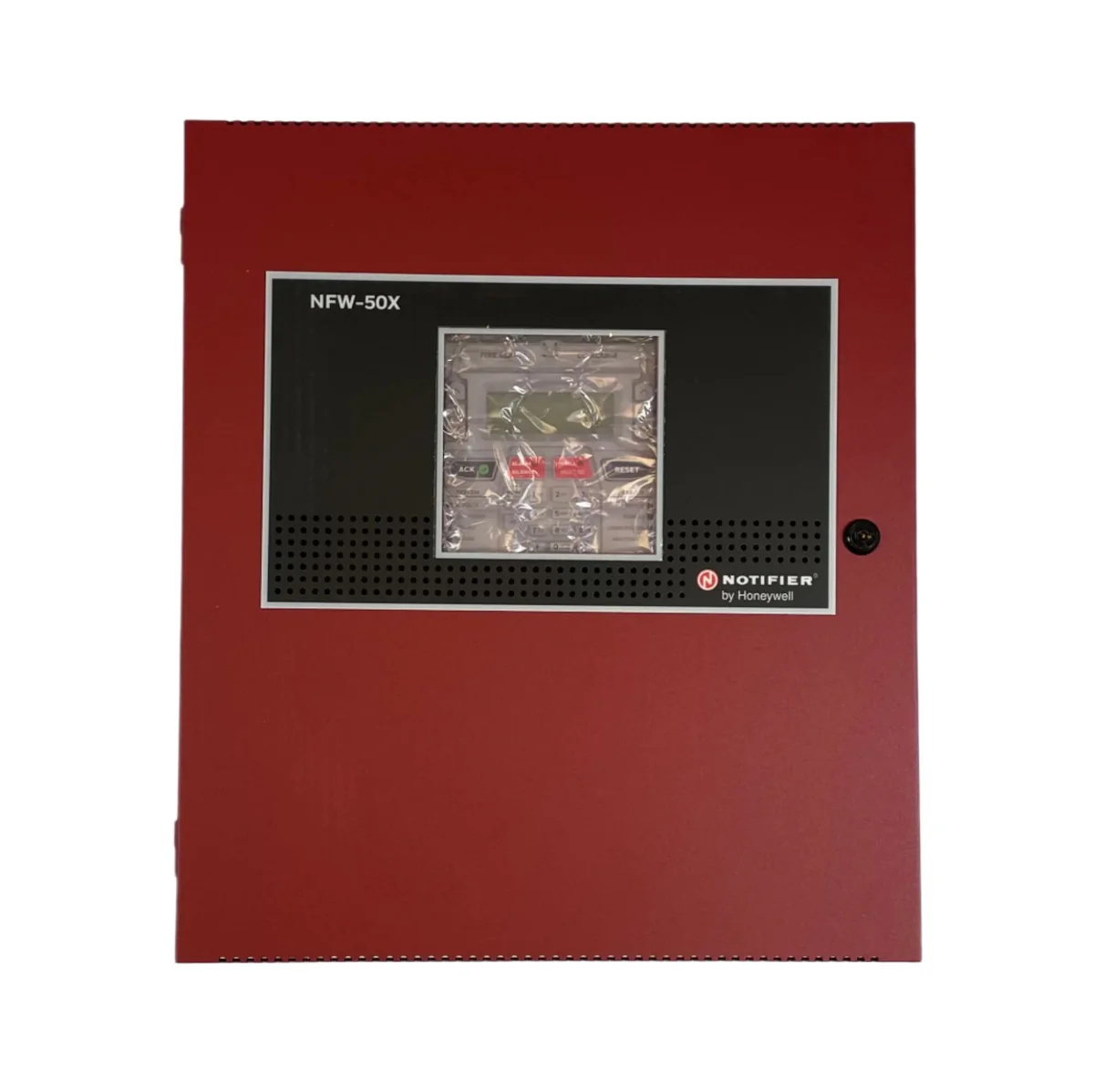

The Notifier NFW-50XR is the FireWarden-50X intelligent addressable Fire Alarm Control Panel in a red cabinet. Furthermore, it ships with the IPOTS-COM communicator pre-installed. Specifically, the panel supports 50 addressable devices on one SLC. As a result, it fits applications that once required a conventional zoned panel. Therefore, owners get addressable diagnostics and per-point labeling on a small site.
This FACP runs both FlashScan and CLIP protocols. In addition, the universal AC input self-senses 120 VAC or 240 VAC at 50/60 Hz. Furthermore, the pre-installed IPOTS-COM is a dual-technology (POTS + IP) communicator. Therefore, the panel can report alarms, troubles, and supervisory events to a central station. Also, it covers AC-loss reporting from day one.
Notifier NFW-50XR capacity and outputs
- 50 addressable devices total: any mix of detectors and modules on one SLC
- 2 Class A or Class B Notification Appliance Circuits (NAC), 250 mA regulated per circuit
- Universal AC input: 120/240 VAC auto-sensing, 50/60 Hz, 3.25 A
- Battery backup: 7 AH to 18 AH cabinet capacity (sealed lead-acid)
- Programs identically to the FireWarden-100 family for simple cross-platform configuration
Notifier NFW-50XR specifications
- Protocols: FlashScan and CLIP, dual-mode
- Pre-installed IPOTS-COM communicator (POTS + IP)
- Red cabinet (DP-ES-R dress panel sold separately for the red variant)
- Operating range: 32°F to 120°F (0°C to 49°C)
- Per Notifier NFW-50X / NFW-50XR Fire Alarm Control Panel datasheet
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 23 lbs |
|---|---|
| Dimensions | 22.5 × 20 × 6.5 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Heat Detector |
