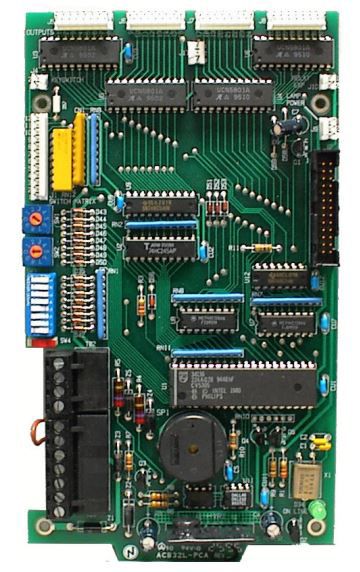

Notifier LDM-E32 Lamp Driver Module Expander
The Notifier LDM-E32 is a lamp driver module expander. It adds LED driver points to a Notifier LDM-32 lamp driver module. Specifically, it drives indicator LEDs on custom graphic and lamp annunciators. As a result, it expands the point count of an existing LDM-32.
Each LDM-E32 adds 32 drivers. In addition, you can configure those drivers two ways. First, use all 32 as alarm-only drivers. Alternatively, split them as 16 alarm, 16 trouble, and 16 switch inputs. This choice is field-selectable.
How the Notifier LDM-E32 expands the LDM-32
The base LDM-32 drives 32 LEDs on its own. Then each LDM-E32 drives 32 more. A 26-conductor ribbon cable links the expander to the LDM-32. Specifically, the ribbon carries power, ground, and signaling. Furthermore, one LDM-32 supports up to three LDM-E32 expanders in alarm/trouble mode.
Verified specifications
- Function: LED/lamp driver expander for the Notifier LDM-32
- Drivers added: 32 per LDM-E32 (or 16 alarm / 16 trouble / 16 switch, field-selectable)
- Driver rating: 30 V maximum, 100 mA per driver
- Expanders per LDM-32: up to three (alarm/trouble mode)
- Included: 26-conductor ribbon cable, 4 standoffs, 4 screws
Order the Notifier LDM-E32
Life Safety Consultants stocks the Notifier LDM-E32 lamp driver expander. To confirm fit with your LDM-32 annunciator, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.65 lbs |
|---|---|
| Dimensions | 13 × 7.1 × 4.4 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Module |
