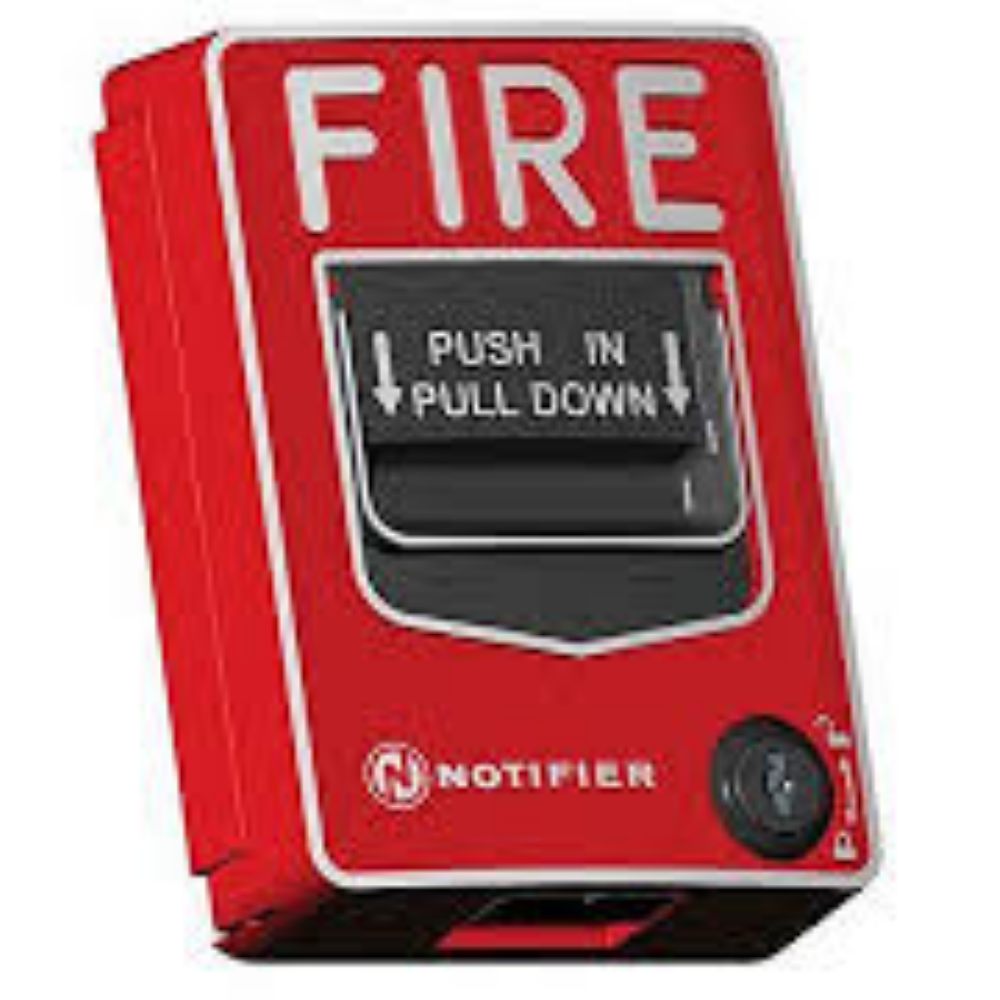

Notifier NBG-12 Dual-Action Manual Pull Station
The Notifier NBG-12 is a red dual-action manual fire alarm pull station. It is a non-coded, conventional pull station with screw-terminal connections. Specifically, the dual-action design needs two steps to activate. First, push the handle in. Then pull it down. As a result, accidental alarms are far less likely.
This station suits indoor commercial and institutional fire alarm systems. For example, use it in offices, schools, hospitals, and retail spaces. In addition, the molded handle includes Braille text and arrows for ADA accessibility. Therefore, it activates with no more than 5 pounds of force.
How the Notifier NBG-12 operates
First, push the handle inward, then pull down to latch the alarm switch. Then the word "ACTIVATED" appears at the top of the handle. As a result, the activated state is visible across the room. To reset, insert the key and turn a quarter turn. Furthermore, opening the cover returns the handle to normal.
Verified specifications
- Type: non-coded conventional dual-action manual pull station
- Color: red
- Reset: key lock (uses the 17021 key set)
- Switch: SPST normally open, screw terminals (up to 12 AWG)
- Switch contact rating: 0.25 A @ 30 VAC or VDC (gold-plated)
- Activation force: 5 lb maximum (meets ADA / ADAAG)
- Construction: durable polycarbonate
- Dimensions: 5.500" H × 4.121" W × 1.390" D
- Operating temperature: 32°F to 120°F (0°C to 49°C)
- Humidity: 10%–93% non-condensing
- Backbox: SB-10 (semi-flush) or SB-I/O (surface)
Agency listings
- C(UL)US Listed: file S692 (UL 38)
- CSFM and FM Approved; MEA listed
Important model note
The NBG-12 is the conventional pull station. However, the addressable version is the separate NBG-12LX. Therefore, confirm whether your panel needs a conventional or addressable station before ordering.
Order the Notifier NBG-12
Life Safety Consultants stocks the Notifier NBG-12 pull station and accessories. To confirm fit with your conventional fire alarm panel, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 3 × 6 × 9 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Pull Station |
