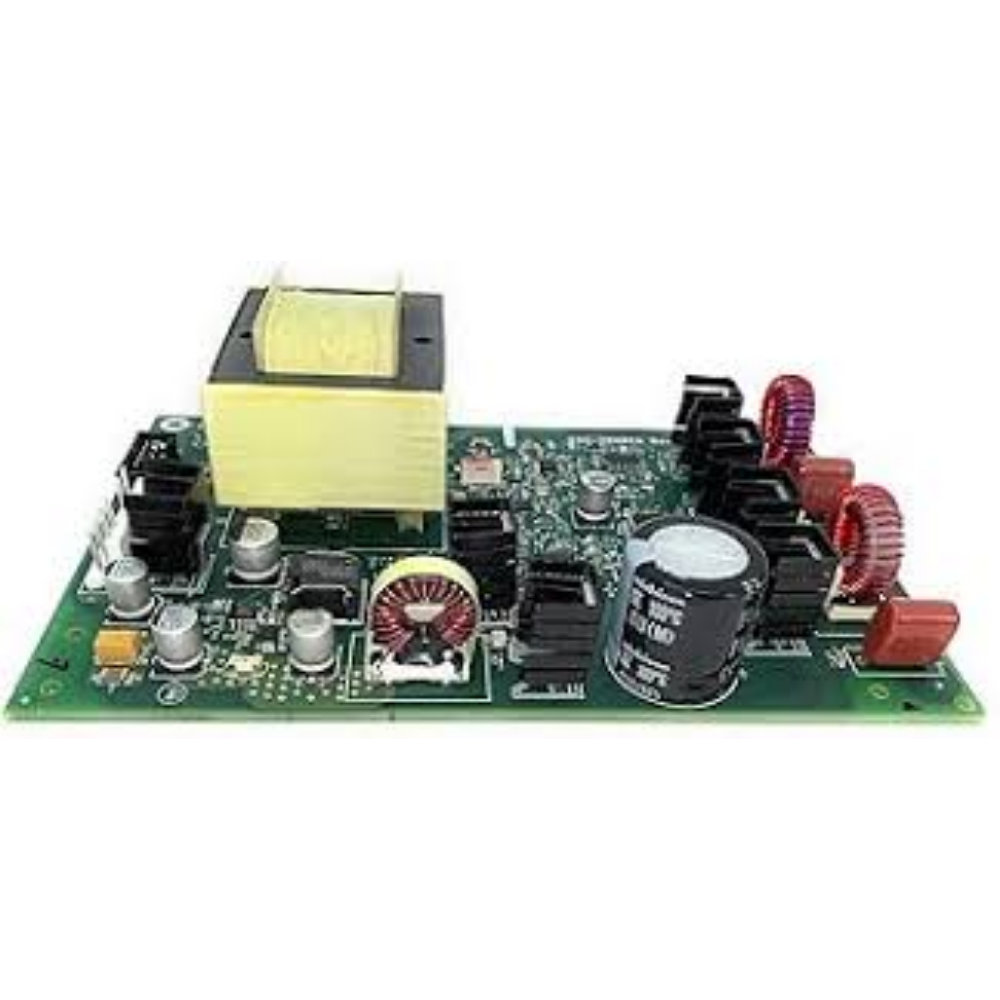

Notifier NFC-BDA-70V 70V Audio Amplifier Module
The Notifier NFC-BDA-70V is a 70-volt, 50-watt audio amplifier module. It adds a second speaker circuit to an NFC-50 or NFC-100 voice panel. As a result, total amplifier output increases to 100 watts. Alternatively, it serves as a backup amplifier for redundancy.
This amplifier expands voice evacuation capacity. For example, use it to drive a second speaker zone. In addition, it provides a standby amplifier if the primary fails. Therefore, it supports both expansion and reliability goals.
How the Notifier NFC-BDA-70V is used
First, add the module to an NFC-50/100 system for a second 70V circuit. Then the system delivers up to 100 watts total. In addition, the module works with DAA2 and DAX digital audio systems. Specifically, switch settings select 50 W or 35 W operation.
Verified specifications
- Type: 70 V audio amplifier module (second speaker circuit or backup)
- Power: 50 watts (switch-selectable 50 W or 35 W with DAA2/DAX)
- Output: 70 V distributed speaker line
- Use with: Notifier NFC-50 / NFC-100 voice panels; DAA2, DAX systems
Order the Notifier NFC-BDA-70V
Life Safety Consultants stocks the Notifier NFC-BDA-70V amplifier module. To confirm fit with your NFC voice system, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 9.5 × 8.5 × 3.5 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Speaker |
