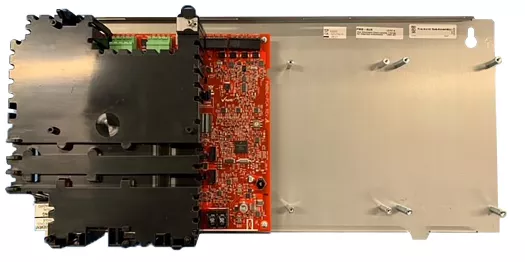

The Notifier PMB-AUX is an addressable auxiliary power supply for the INSPIRE N16 Series Fire Alarm Control Panel. First, it provides four power-limited NAC outputs. In addition, it adds two 24 VDC auxiliary power outputs and a remote sync input.
How the Notifier PMB-AUX integrates with the N16 panel
Each NAC may be configured for Class A or Class B wiring. As a result, installers can match notification topology to the building layout. Furthermore, a maximum of two PMB-AUX modules can install in an N16x panel or compatible enclosure.
Battery charging
The integrated charger supports sealed lead-acid batteries from 7 AH to 100 AH. Also, charging current is selectable at 1 A, 2 A, or 4.25 A. The charging voltage is 27.6 VDC nominal.
PMB-AUX specifications
- Type: addressable auxiliary power supply and battery charger
- Compatible panel: NOTIFIER INSPIRE N16 Series FACP
- NAC outputs: 4 power-limited (Class A or Class B)
- Auxiliary 24 VDC outputs: 2 (each rated 1.5 A)
- Remote sync input: yes
- Battery range: 7 AH to 100 AH sealed lead-acid
- Charging current options: 1 A, 2 A, 4.25 A
- Charging voltage: 27.6 VDC nominal
- Max units per N16x panel: 2 (PMB-AUX or PMB-AUX-RTO)
- AC input: universal
Therefore, the PMB-AUX delivers regulated 24 VDC power for notification appliances and auxiliary loads. Also, it supports system supervision through addressable feedback to the host panel.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 8.6 lbs |
|---|---|
| Dimensions | 19.5 × 10 × 7 in |
| Condition | New |
| Manufacturers | Notifier |
| Part Type | Power Supply |
