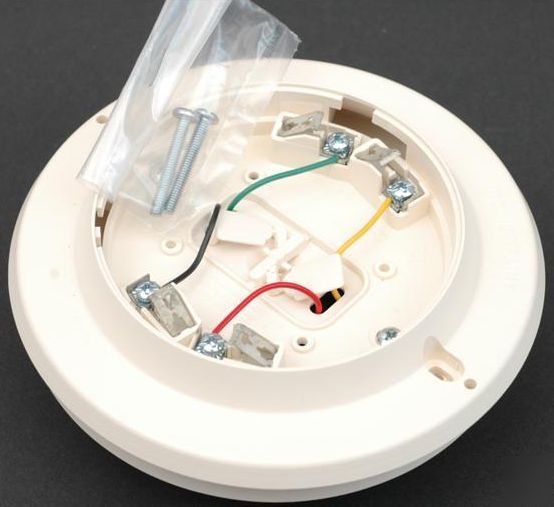

The Siemens ADBX-11 is an audible fire detector mounting base for Series 11 detectors. First, it combines a standard Series 11 base with support circuitry and a built-in sounder. As a result, it provides local audible notification right at the detector.
This base ships reconditioned with a one-year warranty. Please note the ADBX-11 is discontinued by the manufacturer. Therefore, it is most useful for repairs and like-for-like replacements.
Siemens ADBX-11 Operation
On alarm, the base activates its audible device. Specifically, it produces an 85 dB signal for localized annunciation. In addition, a jumper selects either a steady or temporal tone.
The base operates on 17–31 VDC. Field wiring terminates at two of the four terminal blocks on the back. As a result, installation stays straightforward.
Compatibility and Mounting
The ADBX-11 supports Siemens FP-11 and FPT-11 detectors. Furthermore, it also accepts FS-DP, FS-DPT, and FS-DT detectors. It works with the Siemens MXL family of control panels. Finally, it mounts to a 4-inch square electrical box with an extension.
Order the Siemens ADBX-11
Life Safety Consultants stocks the reconditioned Siemens ADBX-11 audible base. To order or confirm compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
Additional information
| Weight | .5 lbs |
|---|---|
| Dimensions | 6 × 6 × 1 in |
| Part Type | Base, Detector Base |
| Manufacturers | Siemens |
| Condition | Reconditioned |
| Compatible Panels | MXL, MXLV, FireFinder XLS, Sinteso |
| Compatible Bases | Siemens 11-series detector heads |
| Cross Reference | ADBX11, ADB-11X |
| Base Type | Extended/Weatherproof Audible Detector Base |
| Integrated Device | Sounder/Horn |
| Head Compatibility | Siemens 11-series |
| Application | Harsh/outdoor environments |
| Mounting | Standard electrical box |
