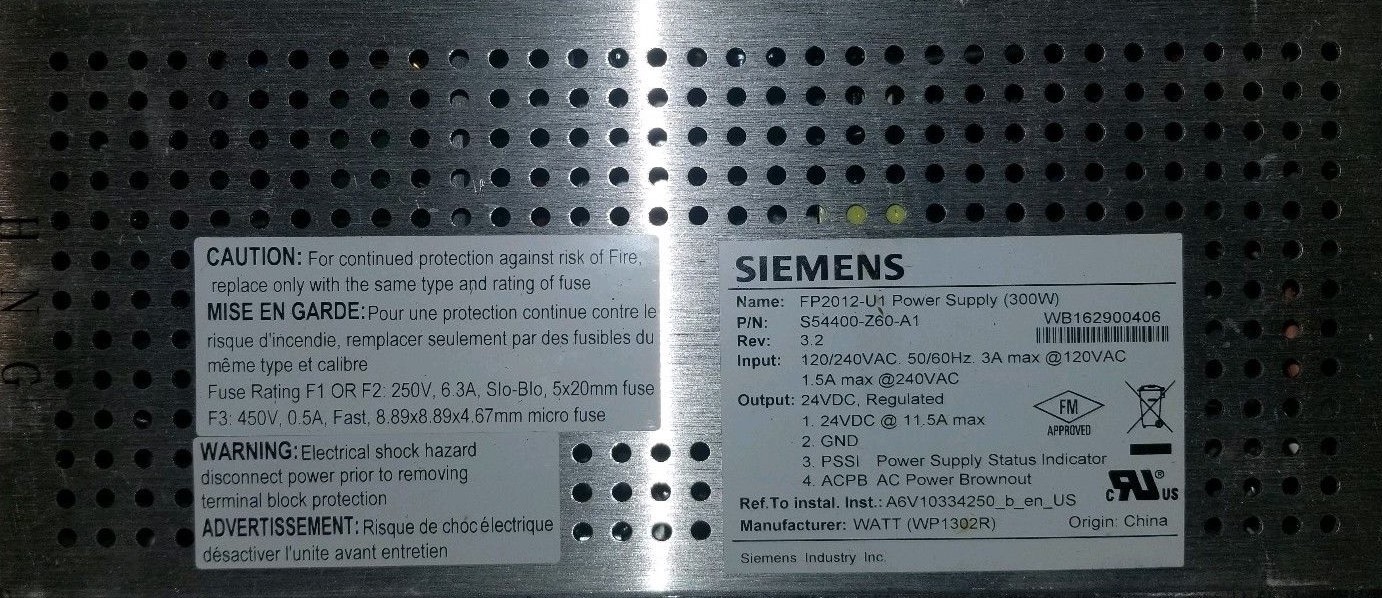

The Siemens FP2012-U1 is a 300-watt power supply. It powers Siemens PAD-series distributed power supply units in fire alarm systems.
First, the FP2012-U1 supplies regulated DC power to a PAD main board. The PAD board then distributes that power to notification appliance circuits and auxiliary devices. As a result, the 300W FP2012-U1 supports higher-current loads than the 170W FP2011-U1. Specifically, on a PAD-5 it enables up to 9 A at 24 VDC across the outputs.
Where the Siemens FP2012-U1 Is Used
The FP2012-U1 is the higher-capacity power supply option for Siemens PAD-4 and PAD-5 distributed power supply units. Therefore, it suits larger installations with heavy notification appliance loads. Siemens lists this 300W power supply under part number S54400-Z60-A1. As a genuine Siemens component, it maintains UL listing compliance.
Key Details
- 300-watt regulated power supply (Siemens)
- Powers Siemens PAD-4 and PAD-5 distributed power supply / NAC extender units
- Higher-capacity alternative to the 170-watt FP2011-U1
- Supports up to 9 A at 24 VDC on a PAD-5 platform
- Genuine Siemens replacement component (part number S54400-Z60-A1)
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 9.88 × 3.88 × 2.5 in |
| Condition | New |
| Part Type | Power Supply |
| Manufacturers | Siemens |
| Compatible Panels | FireFinder XLS, MXL, Siemens large-system platforms |
| Cross Reference | PSC-12 |
| Specification | Part # S54400-Z60-A1 |
