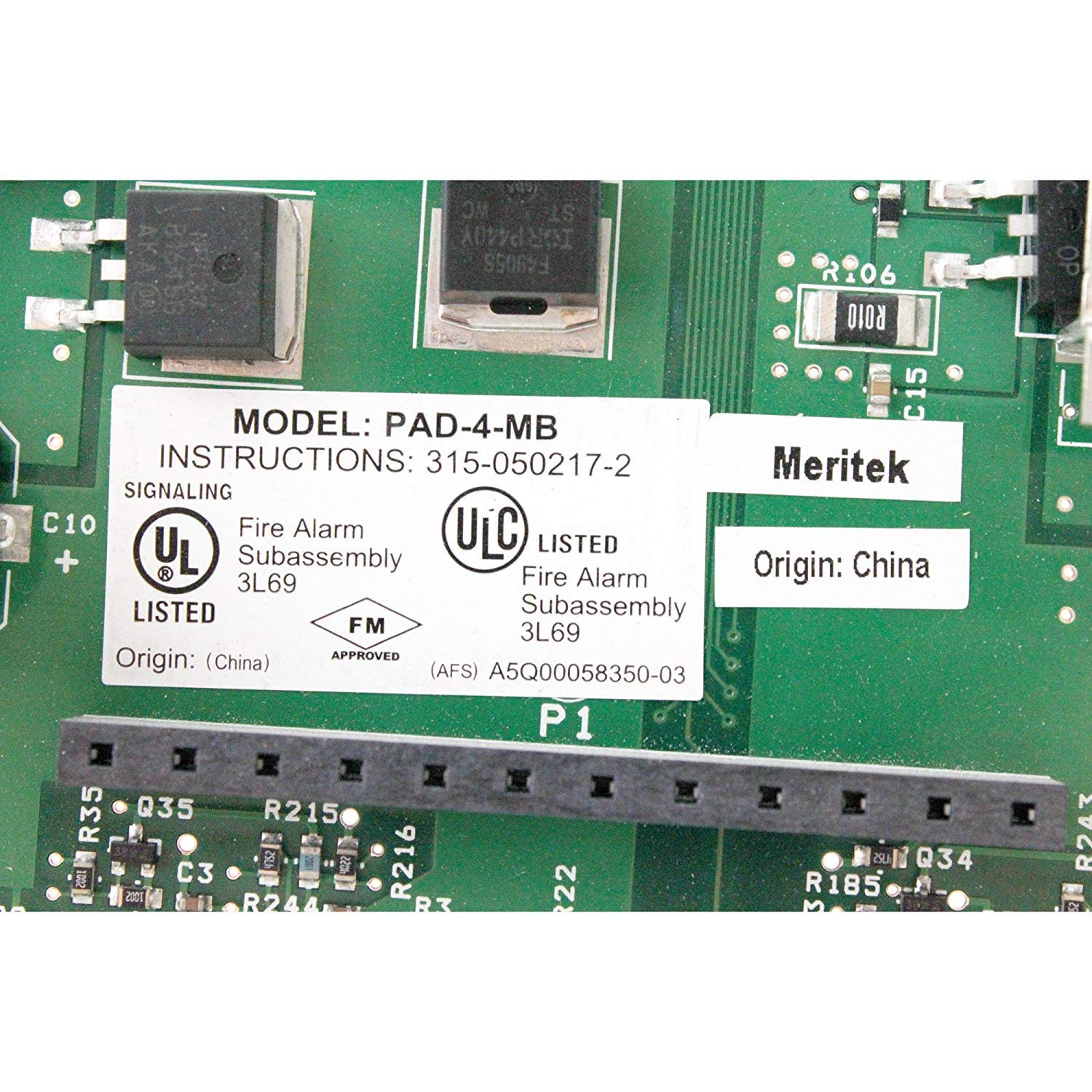

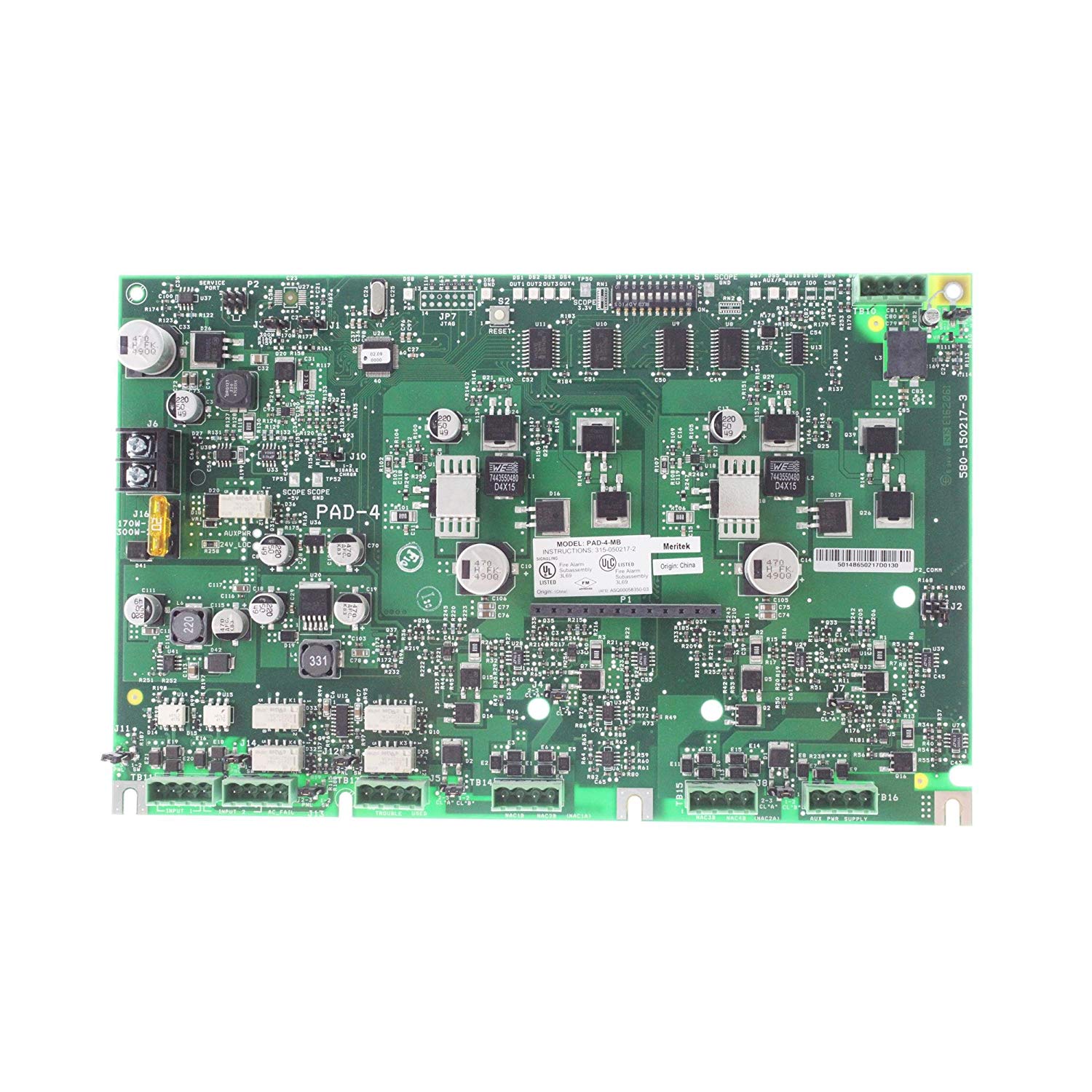

The Siemens PAD-4-MB is the replacement main board for the Siemens PAD-4 distributed power supply unit. Here, “MB” means main board. Therefore, this is the circuit board only — not a complete enclosure.
The PAD-4 is a distributed power supply and notification appliance circuit extender. First, it adds notification appliance circuits to a fire alarm system. As a result, it powers more strobes, horns, and speakers from a remote location. The PAD-4-MB restores that functionality when the original board fails.
Siemens PAD-4-MB Main Board Capabilities
The PAD-4 main board provides four power-limited notification appliance circuits. Each NAC is rated 3 A at 24 VDC. In addition, the board includes trigger inputs, battery supervision, and strobe synchronization. It also supports ground-fault detection, status LEDs, and trouble reporting.
The board requires a compatible Siemens power supply. Specifically, the FP2011-U1 (170W) or FP2012-U1 (300W) sets the available current. However, the PAD-4 enclosure (PAD-4-ENCL) is ordered separately. As a genuine Siemens component, the PAD-4-MB maintains UL listing compliance.
Key Details
- Replacement main board for the Siemens PAD-4 distributed power supply / NAC extender
- “MB” = main board (board only, no enclosure)
- Four power-limited NAC outputs, 3 A at 24 VDC each
- Battery supervision, strobe synchronization, ground-fault detection, and trouble reporting
- Requires an FP2011-U1 (170W) or FP2012-U1 (300W) power supply
- PAD-4 enclosure (PAD-4-ENCL) sold separately
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
| Condition | New |
| Part Type | Appliance Extender, Power Extender Panel |
| Manufacturers | Siemens |
| Compatible Panels | MXL, FireFinder, Sinteso, Cerberus PRO |
| Cross Reference | PAD-3-MB |
| Specification | Includes metal backbox |
