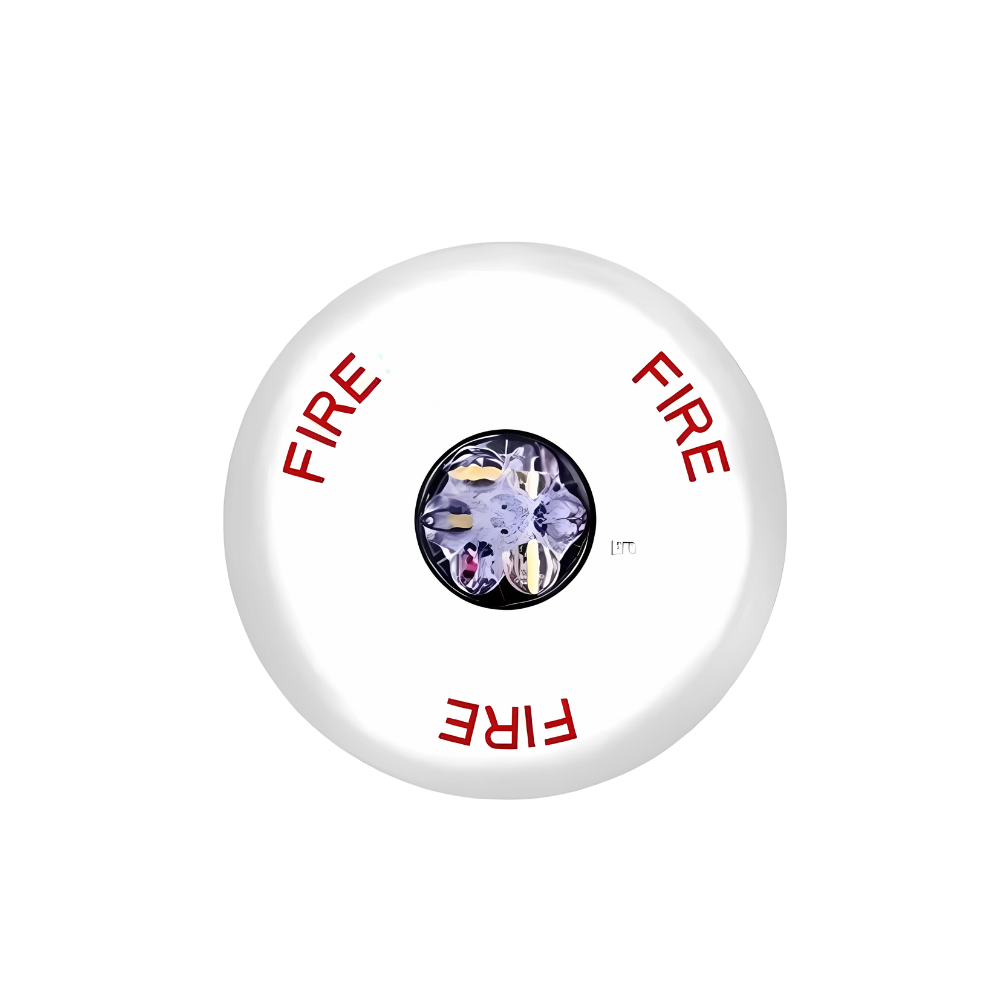

The Siemens SL2HSCW-F is a ceiling-mount horn-strobe in the Siemens SL2 notification-appliance series. The white faceplate carries “FIRE” lettering and a clear lens.
First, the SL2HSCW-F uses LED strobe technology in place of older Xenon designs. As a result, current draw is significantly reduced compared to legacy strobes. Furthermore, the LED light pulse meets the 20-millisecond duration requirement of the 2016 edition of NFPA 72.
Four field-selectable candela settings
An index-finger slide adjuster sets the strobe output without tools. Specifically, the SL2HSCW-F supports 15, 30, 75, and 110 cd in a single appliance. As a result, a single SKU covers most ceiling notification applications.
Audible operation
The horn portion of the Siemens SL2HSCW-F provides two field-selectable tone modes. These are the Code 3 (T3) temporal pattern and continuous output. In addition, sound output can be set to High or Low.
Compatibility
The SL2HSCW-F works with Siemens 50-point, 252-point, and 504-point addressable fire alarm control panels. Also, it is compatible with the FireFinder XLS / XLSV, Cerberus PRO Modular, PAD-series NAC extenders, and the dual-sync control (DSC) module.
Specifications
- Type: Ceiling-mount horn-strobe with LED strobe
- Faceplate: White, “FIRE” lettering, clear lens
- Candela settings: 15 / 30 / 75 / 110 cd (field-selectable)
- Audible modes: Code 3 (T3) or Continuous; High or Low dB setting
- Application: Indoor use only
- Listings: UL 1971 (strobe), UL 464 (audible) Listed
- Part number: S54329-F94-A1
- Source: Siemens SL series notification appliances Data Sheet 2593 (Rev 4, July 2021) for the LED platform architecture; Siemens SID A6V14140217 (Data Sheet 2600) for the SL2 ceiling-mount family
Order or get application help
Life Safety Consultants stocks the genuine Siemens SL2HSCW-F ceiling horn-strobe. To order or confirm sync-protocol compatibility, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.7 lbs |
|---|---|
| Dimensions | 6.5 × 6.5 × 2.5 in |
| Condition | New |
| Manufacturers | Siemens |
| Part Type | Horn / Strobe |
