The Silent Knight SK-NIC-KIT is an accessory install kit for mounting an SK-NIC network interface card outside a Silent Knight fire alarm control panel.
First, the kit contains an SK-NIC card, a small cabinet with door, a 6-pin cable, and mounting hardware. Then it gives technicians a clean way to add networking to a panel without crowding the FACP enclosure.
What’s in the Silent Knight SK-NIC-KIT
- One SK-NIC network interface card
- Small cabinet with door for external mounting
- 6-pin cable for panel-to-card connection
- Mounting hardware

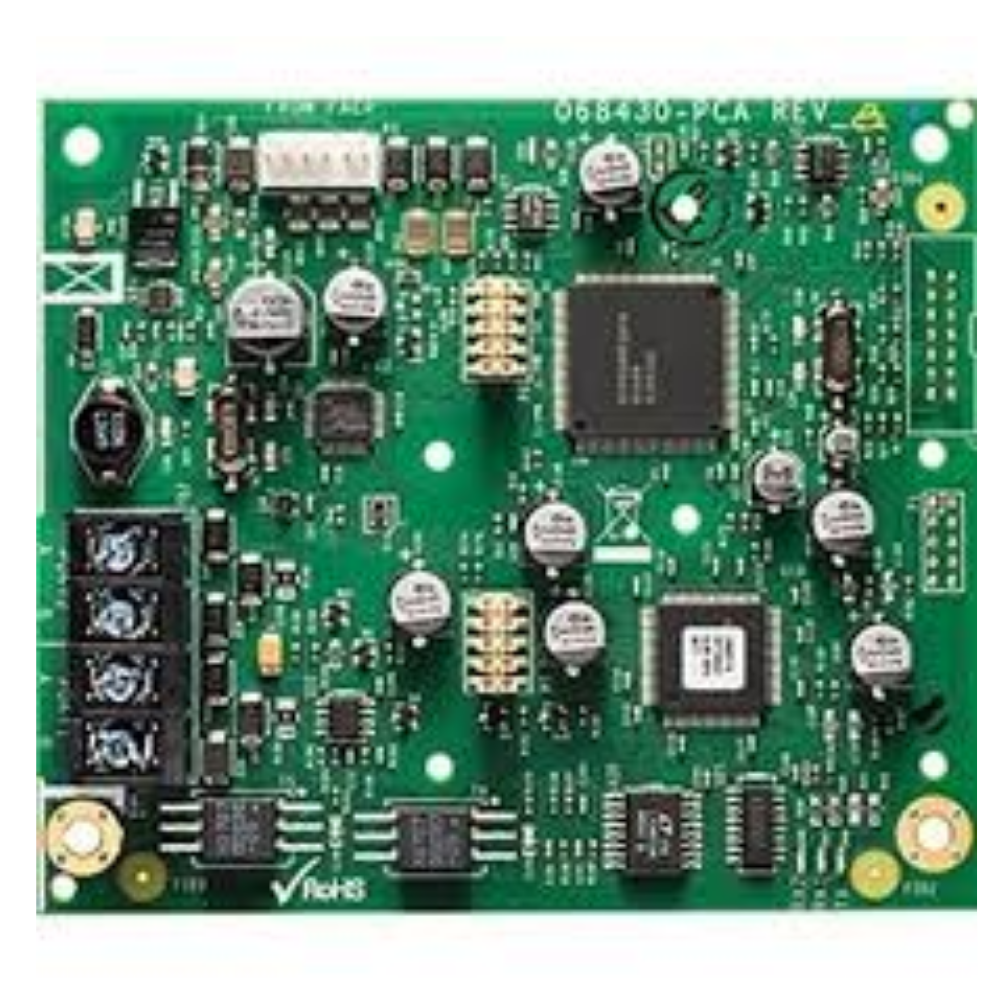

How the SK-NIC Card Works
The SK-NIC creates a peer-to-peer network link between Silent Knight 6000 Series addressable panels. As a result, multiple panels can share alarm, trouble, and status information across a site.
In addition, the card supports unshielded twisted-pair copper between nodes. Therefore, installers can run network segments without specialized cable.
Typical Applications
Use the kit when an existing site adds networking after the initial install. Also use it when the host panel lacks internal space for a flush-mounted card.
Order or Get Application Help
Since 2002, Life Safety Consultants has supplied Silent Knight parts to fire alarm technicians. To order the Silent Knight SK-NIC-KIT or confirm panel compatibility, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.14 lbs |
|---|---|
| Dimensions | 7 × 5 × 7 in |
| Condition | New |
| Manufacturers | Silent Knight |
| Part Type | Module |
