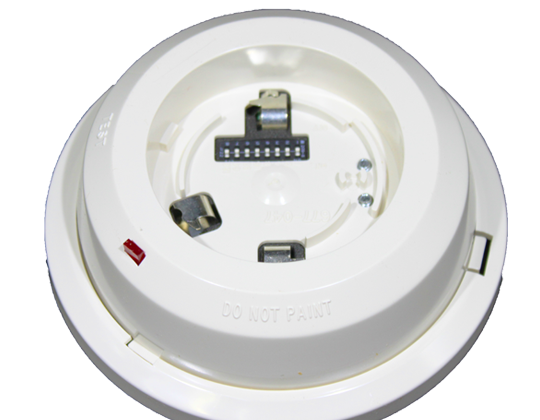

The Simplex 4098-9784 is a TrueAlarm 4-inch addressable sensor base, part number 0677052. It seats a TrueAlarm photoelectric, ionization, or heat sensor. As a result, one base supports several detection types across a building.
Simplex 4098-9784 Communication
The base and its sensor share a single wire pair. First, IDNet or MAPNET II two-wire communication carries both power and data. Therefore, the sensor reports its analog value digitally to the panel. In addition, a base LED provides local status indication.
Addressing and Panels
The base uses DIP-switch addressing for simple device identification. Furthermore, it works with Simplex intelligent control panels. Compatible panels include the 4007ES, 4010, 4010ES, 4020, 4100, 4100U, 4100ES, and 4120 Series.
Mounting and Listing
The 4098-9784 mounts to a standard 4-inch octagonal or 4-inch square electrical box. However, the box must be at least 1.5 inches deep. Also, the TrueAlarm sensor and base operate as a UL 268 listed addressable detection system.
Order the Simplex 4098-9784
Life Safety Consultants stocks the Simplex 4098-9784 TrueAlarm sensor base. To confirm sensor and panel compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 5 × 5 × 1 in |
| Condition | New |
| Manufacturers | Simplex |
| Compatible Panels | 4007ES, 4010, 4010ES, 4100ES, 4100U, 4020, 4100, 4120 Series |
| Cross Reference | 0677052 |
| Specification | 4-inch addressable base, IDNet/MAPNET II two-wire communications, DIP-switch address, 4 octagonal or 4 square box 1.5 min depth |
