Simplex 4906-9130, Simplex (4906-9130) Ceiling Mount Multi-Candela Horn Strobe – White 0743257

Simplex (4906-9130) Ceiling Mount Multi-Candela Horn Strobe – White 0743257

$80.36

SKU: 4906-9130 Brand:

TrueAlert audible/visible notification appliances with electronic horn & xenon strobe

2 in stock

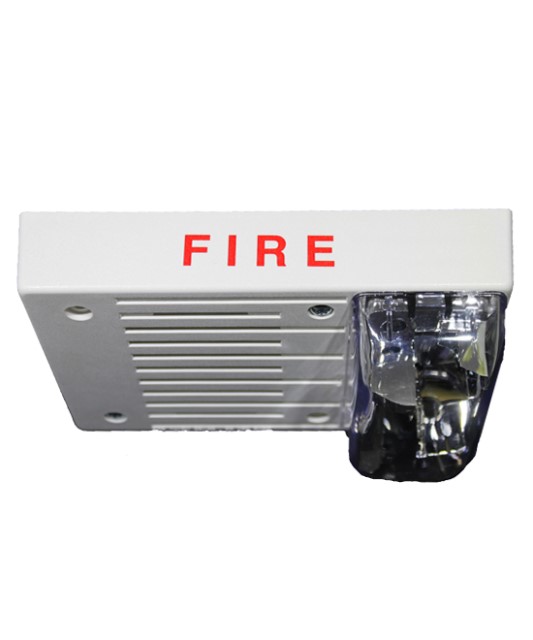

Simplex 4906-9130 Ceiling Horn Strobe

The Simplex 4906-9130 is a ceiling-mount TrueAlert multi-candela horn strobe for fire notification. First, it pairs a 24 VDC electronic horn with a high-output xenon strobe. As a result, it delivers both audible and visual alerts from one ceiling appliance.

The housing is white with red "FIRE" lettering. In addition, it is molded from rugged, flame-retardant thermoplastic. Therefore, it offers a clean look with durable construction.

Multi-Candela Strobe and SmartSync

The strobe intensity is field-selectable at 15, 30, 75, or 110 candela. You set it with a rear-mounted selection plug. As a result, one device covers many coverage requirements and reduces inventory.

The 4906-9130 also uses Simplex SmartSync technology. Specifically, the horn and strobe share a single two-wire NAC. Therefore, the strobe flashes at a synchronized 1 Hz rate while the horn can be silenced.

The horn supports several patterns. For example, it offers Temporal (T3), 60 BPM march time, or continuous tone.

Compliance and Compatibility

The 4906-9130 meets NFPA and ADA requirements for sound and light. In addition, it is UL 1971 and UL 464 listed. It runs on a standard 24 VDC synchronizing NAC. Therefore, it works with Simplex panels such as the 4100ES, 4010, and 4008.

Order the Simplex 4906-9130

Life Safety Consultants stocks the Simplex 4906-9130 and compatible panels. To order or verify NAC compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.

Additional information

Weight .50 lbs
Dimensions 5.5 × 5.5 × 5.5 in
Manufacturers

Simplex
Compatible Panels

Simplex 4906-9130 Ceiling Mount Multi-Candela Horn Strobe White
Compatible Bases

<p>The Simplex <strong>4906-9130</strong> is a ceiling-mount combination horn strobe designed for use in commercial fire alarm systems requiring ADA-compliant audible and visual notification. Part of the TrueAlert&reg, SmartSync family, the <strong>4906-9130</strong> features a white housing with red FIRE letters and mounts to a ceiling electrical box.</p><p>Operating on a two-wire SmartSync NAC at 24 VDC, the <strong>4906-9130</strong> synchronizes its xenon strobe flash at 1 Hz across all devices on the circuit without an external synchronization module. Strobe intensity is field-selectable at 15, 30, 75, or 110 candela to meet spacing requirements for the protected area.</p><ul><li><strong>Housing:</strong> White with red FIRE letters, ceiling mount</li><li><strong>Strobe:</strong> Multi-candela, selectable 15/30/75/110 cd, synchronized 1 Hz xenon flash</li><li><strong>Horn:</strong> Temporal (T3) pattern, 60 BPM March Time, or continuous tone</li><li><strong>Voltage:</strong> 24 VDC via SmartSync two-wire NAC</li><li><strong>Listings:</strong> UL 1971 (strobe), UL 464 (horn), ADA compliant</li></ul><p>The 4906-9130 is an ideal choice for corridors, atriums, and open areas where ceiling-mount notification is required.</p>
Cross Reference

4100ES,4020,4010,4008
Specification

Compatible with any panel supporting a standard 24 VDC synchronizing NAC, SmartSync synchronization built in











Description

  • Multi-Candela TrueAlert A/Vs with horn and synchronized strobe provide convenient installation to standard electrical boxes. The enclosure designs are both impact and vandal resistant and provide a convenient strobe intensity selection. Since each model can be selected for strobe intensity output, on-site model inventory is minimized and changes encountered during construction can be easily accommodated.
  • Wall mount A/V housings are a one-piece assembly (including lens) that mounts to a single or double gang, or 4” square standard electrical box. The cover can be quickly removed (a tool is required) and covers are available separately for color conversion.
  • Ceiling mount A/Vs install using standard 4” electrical boxes. Color choice is determined by model number.

Features

  • Audible/visible (A/V) notification appliances with efficient electronic horn and high output xenon strobe, available for wall or ceiling mount
    • Operation is compatible with ADA requirements (refer to important installation information on page 3)
    • Rugged, high impact, flame retardant thermoplastic housings are available in red or white with clear lens
  • Operates over a two-wire SmartSync circuit to provide:
    • Horns that are controlled separately from strobes on the same two-wire circuit
    • “On-until-silenced” and “on-until-reset” operation on the same two-wire pair
    • SmartSync horn activation of Temporal pattern, March Time pattern (at 60 BPM), or on continuously
    • Strobe appliances on the same circuit operating at a synchronized 1 Hz flash rate
    • Class B (Style Y) operation requires connection to a compatible SmartSync NAC or to SmartSync Control Module (SCM) 4905-9938
    • Class A (Style Z) operation when connected to the 4905-9938 SCM or with 4100U series fire alarm control panel NACs
  • Wall mount A/Vs features:
    • Wiring terminals are accessible from the front of the housing providing easy access for installation, inspection, and testing
    • Covers are available separately to convert housing color
  • Optional adapters and wire guards:
    • Wall mount A/V adapters are available to cover surface mounted electrical boxes and to adapt to Simplex® 2975-9145 boxes
    • UL listed red wire guards are available for wall or ceiling mount A/Vs
  • Visible notification appliance (strobe):
    • 24 VDC xenon strobe; intensity is selectable as 15, 30, 75, or 110 candela with visible selection jumper secured behind strobe housing
    • UL listed to Standard 1971
    • Regulated circuit design ensures consistent flash output and provides controlled inrush current
  • Audible notification appliance (horn):
    • Low current, 24 VDC electronic horn with harmonically rich sound output suitable for either steady or coded operation (Temporal or 60 BPM March Time pattern)
    • UL listed to Standard 464
