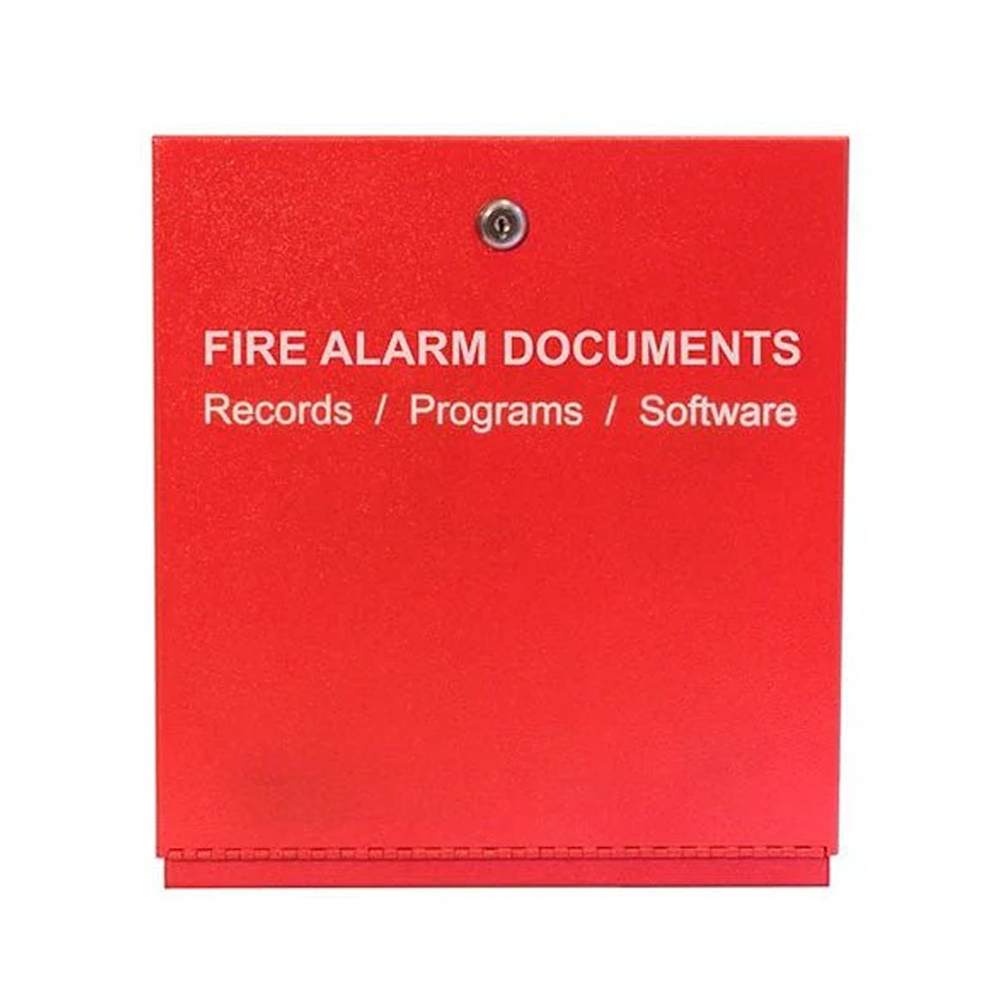

The Space Age SSU00685 is the FAD Fire Alarm Documents Box — a red, locked, wall-mount cabinet that stores fire alarm system records at the panel. First, mount the FAD next to the fire alarm control unit. Then load the documentation and the integrated USB memory drive. As a result, inspectors and technicians find current records in one obvious, code-compliant location.
Why an at-panel records box matters
NFPA 72 (Section 7.7.2.4 and related record-retention clauses) requires that fire alarm system records — including installed software and firmware version numbers — be retained at the fire alarm control unit. However, documentation often ends up scattered between filing cabinets, contractor records, and email. Therefore, an at-the-panel red documents box ensures continuity through tenant changes, building turnovers, and contractor handoffs.
Verified Space Age SSU00685 specifications
- Listing: UL Listed
- Construction: 18-gauge cold-rolled steel with red powder-coat finish
- Dimensions: 12 in. W x 13.25 in. H x 3.13 in. D
- Lock: 3/4 in. barrel lock on a hinged access door
- Hinge: Liftaway hinge for full door removal during access
- USB memory: Minimum 8 GB digital flash drive with slide-tab selectable USB-C or Micro-USB connector for upload/download
- Interior fit: Accommodates 8.5 in. x 11 in. manuals, three-ring binders, and document records
- Organization: Two key-ring holders and a built-in business card holder for key contact personnel
What goes in the FAD
First, the as-built drawings and device address schedule. Second, the current NFPA 72 inspection and test reports. Then any modification records, software backups on the USB drive, and AHJ acceptance correspondence. In addition, store the contractor service log and key-contact business card inside the cabinet. Therefore, an inspector arriving on site has the full system history within arm’s reach of the panel.
How the SSU00685 compares to the rest of the family
The FAD (SSU00685) is the document-storage variant. Alternatively, the SRD (SSU00689) carries SYSTEM RECORD DOCUMENTS lettering for AHJs that require that specific labeling. Furthermore, the SSU01689 is the black-and-white version of the SRD with a CAT 30 high-security lock for high-traffic public spaces.
Need help selecting the right part or verifying compatibility? Our team supports thousands of commercial fire alarm installations every year. Call us at 1-888-557-0558 or email sales@lifesafetycom.com for application guidance, lead-time updates, or volume pricing.
Additional information
| Weight | 8 lbs |
|---|---|
| Dimensions | 13.5 × 12 × 4 in |
| Condition | New |
| Manufacturers | Securitron |
| Part Type | Replacement Part |
