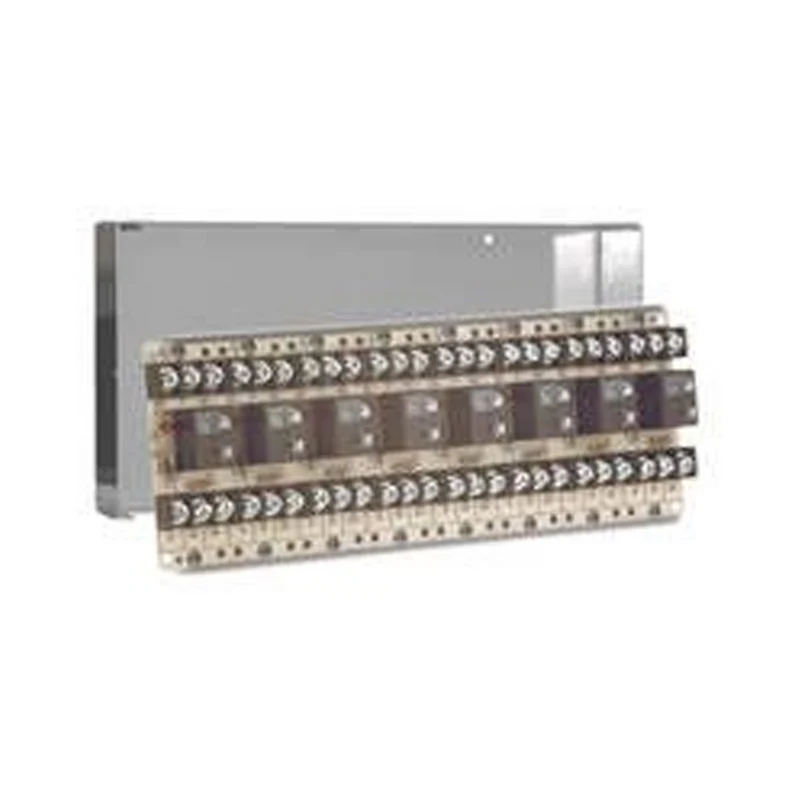

The Space Age SSU-MR-708/C is an eight-position SPDT relay assembly. It houses eight independent control relays in a grey steel enclosure. Each relay operates from 12VDC or 24VDC. As a result, one unit switches up to eight circuits.
Space Age SSU-MR-708/C relay features
Every position contains a red LED. Each LED lights when its coil is energized. Therefore, technicians can check all eight relays at a glance. In addition, modules snap apart from the master and work independently.
The contacts switch resistive loads up to 10 amps. Specifically, they are rated 10A at 120VAC or 30VDC. Also, each DC coil input is polarized.
Specifications
- Contact configuration: SPDT, dry Form “C”, one per position
- Module positions: eight (snap-apart)
- Contact rating: 10A @ 120VAC / 30VDC (resistive)
- Input voltage: 12VDC or 24VDC (polarized)
- Energized indicator: one red LED per position
- Enclosure: grey 18-gauge plated steel back box; 1/2-inch conduit knockouts
- Wiring: solid or stranded, #14 to #22 AWG
- Listings: UL listed; UUKL smoke control; MEA; CSFM
Applications
This assembly suits larger fire alarm and building control jobs. For example, it can manage many HVAC, lighting, or notification circuits. Furthermore, the relays carry a continuous-duty rating.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 3.5 lbs |
|---|---|
| Dimensions | 12 × 7 × 3.5 in |
| Condition | New |
| Manufacturers | Securitron |
| Part Type | Replacement Part |
