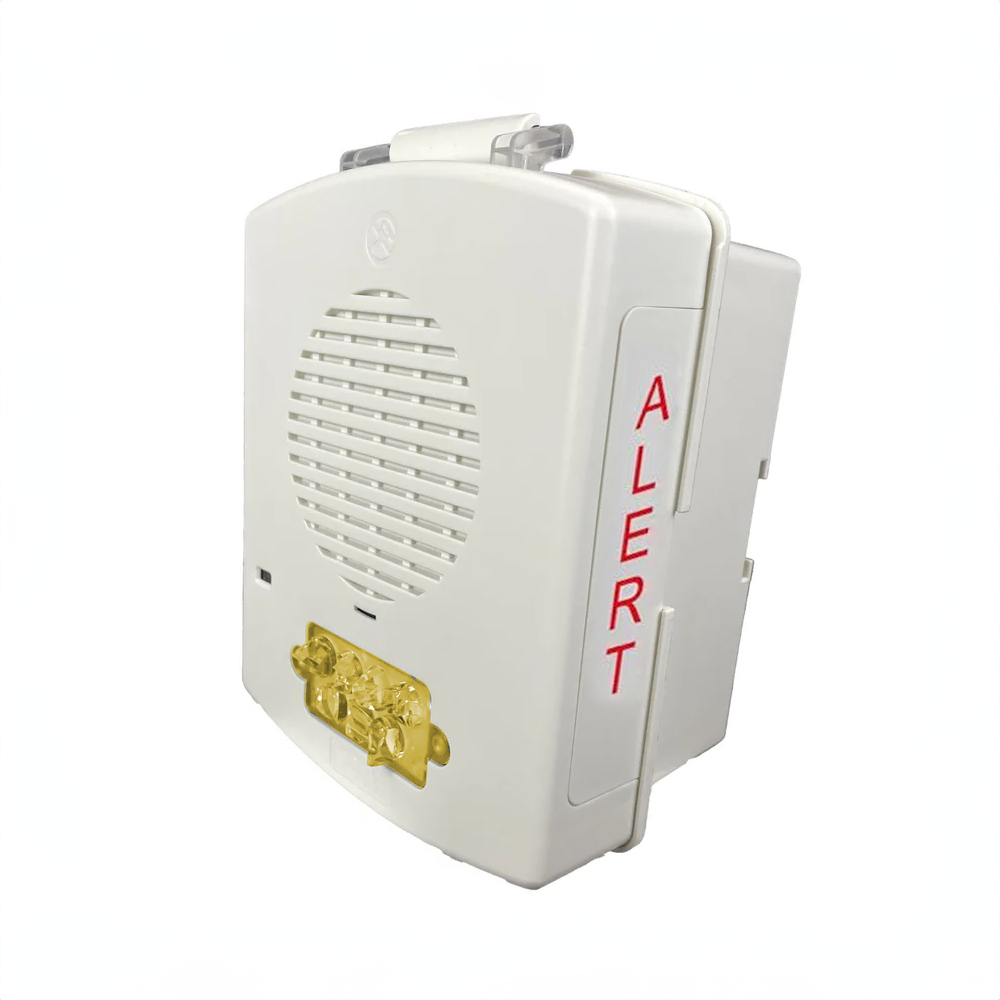

The Wheelock EL3RMTSTA-ALW is a NEMA 3R rated outdoor multi-tone horn strobe. It belongs to Eaton’s Eluxa weatherproof notification line. Specifically, this model joins a multi-tone horn with an amber-lens LED strobe. As a result, it provides audible and visual alerts in one unit. The white housing and amber lens suit private-mode and specialty signaling.
Weatherproof Design
First, the NEMA 3R / IP54 enclosure resists rain, sleet, and windblown dust. Therefore, it performs in covered outdoor and wet indoor areas. In addition, the unit operates from -40°F to 150°F. The UV-stabilized engineered plastic also resists sun fading.
Signaling Performance
The amber strobe offers six field-selectable candela settings: 15, 30, 75, 95, 150, and 177 cd. Installers set candela on site, so one model fits many layouts. Furthermore, the horn provides field-selectable tones. The appliance runs on 24 VDC, and the LED strobe flashes for 20 ms.
Key Features
- NEMA 3R / IP54 weatherproof enclosure for outdoor and wet locations
- Amber-lens LED strobe with six field-selectable candela settings (15–177 cd)
- Multi-tone horn with field-selectable tones
- 24 VDC operation
- 20 ms strobe flash per NFPA 72 (2016)
- Operating range -40°F to 150°F
- White UV-stabilized housing; wall or ceiling mount
- Installs with the included 3R mounting plate
- UL 464 (audible) and UL 1638 (visual) listed
Order the Wheelock EL3RMTSTA-ALW or Get Application Help
Since 2002, Life Safety Consultants has supplied genuine Eaton Wheelock notification and signaling devices. To order the Wheelock EL3RMTSTA-ALW or confirm compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.6 lbs |
|---|---|
| Dimensions | 8 × 6 × 4 in |
| Condition | New |
| Manufacturers | Wheelock |
| Part Type | Strobe |
