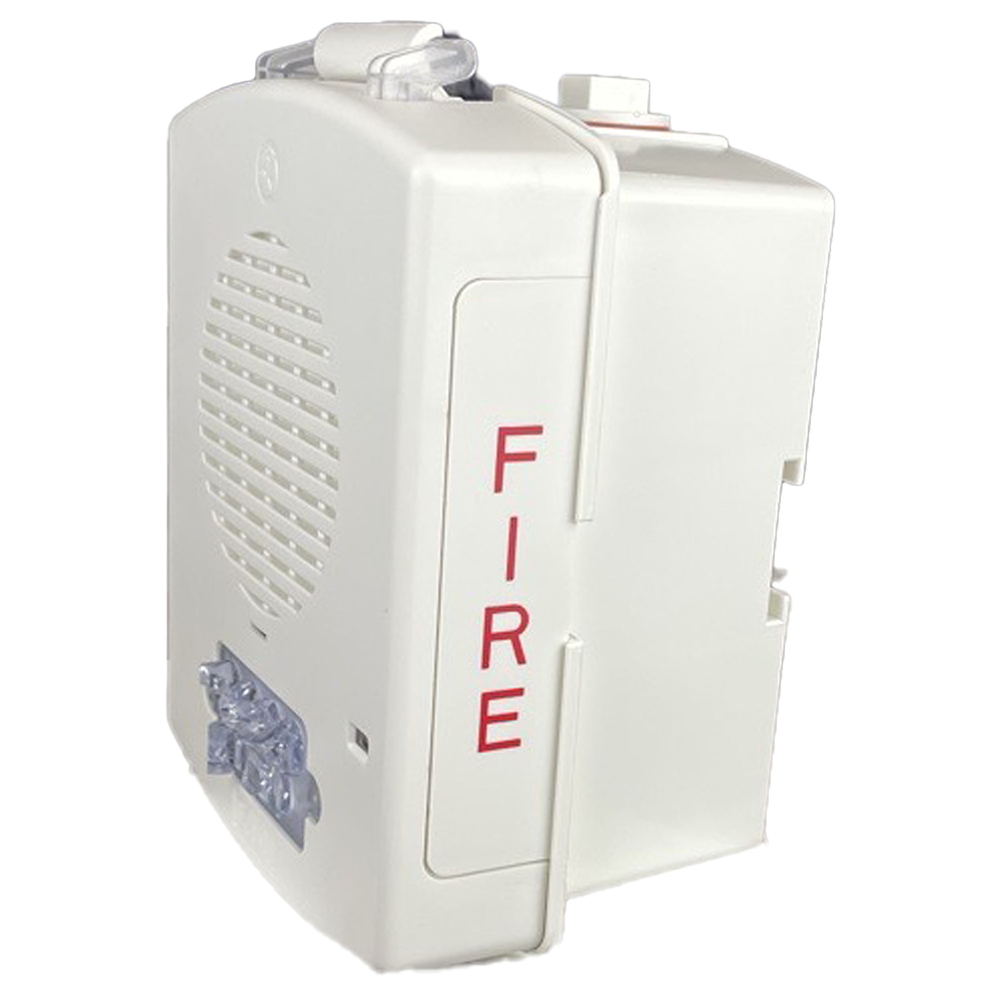

The Wheelock EL4XHS-FW is a NEMA 4X / IP66 rated outdoor horn strobe. It belongs to Eaton’s Eluxa weatherproof notification line. Specifically, this model pairs a high-output horn with a clear-lens LED strobe. As a result, it delivers audible and visual alerts in harsh settings. The white housing suits commercial fire alarm systems built to NFPA 72.
Heavy-Duty Weatherproofing
First, the NEMA 4X / IP66 enclosure resists corrosion, dust, and direct water jets. Therefore, it performs in washdown areas and coastal sites. In addition, the unit operates from -40°F to 150°F. The UV-stabilized engineered plastic also resists sun fading.
Signaling Performance
The strobe offers six field-selectable candela settings: 15, 30, 75, 110, 150, and 185 cd. Installers set candela on site, so one model fits many layouts. In addition, the horn provides three patterns: Continuous, T3, and T3/T4. As a result, it supports both fire and CO signaling. The reverberant output reaches 86 to 90 dBA at 10 feet. Furthermore, the LED strobe flashes for 20 ms, meeting NFPA 72 timing. The appliance runs on 24 VDC.
Key Features (Wheelock EL4XHS-FW)
- NEMA 4X / IP66 enclosure for corrosive, washdown, and coastal sites
- Clear-lens LED strobe with six field-selectable candela settings (15–185 cd)
- High-output horn, three patterns (Continuous, T3, T3/T4); 86–90 dBA at 10 ft
- 24 VDC operation (16–33 VDC/FWR)
- 20 ms strobe flash per NFPA 72 (2016); 1 flash per second
- Operating range -40°F to 150°F
- White UV-stabilized housing; wall or ceiling mount
- UL 464 (audible) and UL 1638 (visual) listed; CSFM and FM approved
Order the Wheelock EL4XHS-FW or Get Application Help
Since 2002, Life Safety Consultants has supplied genuine Eaton Wheelock notification devices. To order the Wheelock EL4XHS-FW or confirm compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.2 lbs |
|---|---|
| Dimensions | 8 × 6 × 6 in |
| Condition | New |
| Manufacturers | Wheelock |
| Part Type | Horn / Strobe |
