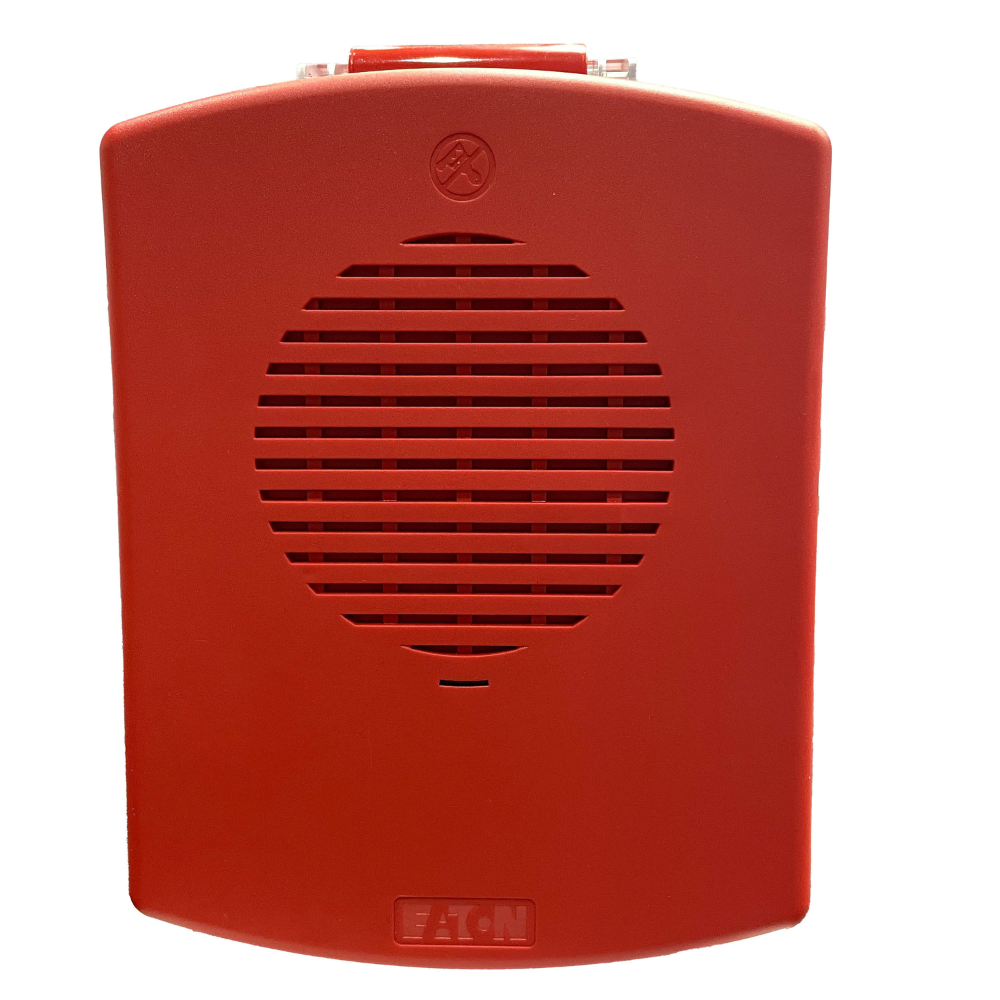

The Wheelock EL4XMT-NR is a NEMA 4X / IP66 rated outdoor multi-tone horn. It comes from Eaton’s Eluxa weatherproof notification line. Notably, this model is an audible-only appliance with no strobe. The red housing ships with a NEMA 4X surface back box. As a result, it signals reliably in demanding commercial environments.
Eight Selectable Tones
First, the Wheelock EL4XMT-NR offers eight field-selectable tones in one device. These include Horn, Bell, March Time, and Code 3 Horn. In addition, it provides Code 3 Tone, Slow Whoop, Siren, and Hi/Lo. Therefore, one model covers fire, alert, and evacuation signaling. The horn tone reaches up to 88 dBA at 10 feet. This rating is reverberant per UL 464 and ULC-S525.
Built for the Outdoors
The NEMA 4X / IP66 enclosure resists corrosion, ice, dust, and water jets. Therefore, it performs from -40°F to 150°F. In addition, it operates on 16 to 33 VDC or FWR. The two-wire design mounts on a wall or ceiling.
Key Features
- Audible-only multi-tone horn; no strobe
- Eight field-selectable tones in one device
- Up to 88 dBA at 10 ft (reverberant per UL 464 / ULC-S525)
- NEMA 4X / IP66 enclosure; -40°F to 150°F
- 16–33 VDC/FWR operation; two-wire
- Red UV-stabilized housing; ships with NEMA 4X surface back box
- Wall or ceiling mount; UL 464 and ULC-S525 listed
Order the Wheelock EL4XMT-NR or Get Application Help
Since 2002, Life Safety Consultants has supplied genuine Eaton Wheelock notification devices. To order the Wheelock EL4XMT-NR or confirm compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 8 × 6.5 × 5.5 in |
| Condition | New |
| Manufacturers | Wheelock |
| Part Type | Strobe |
