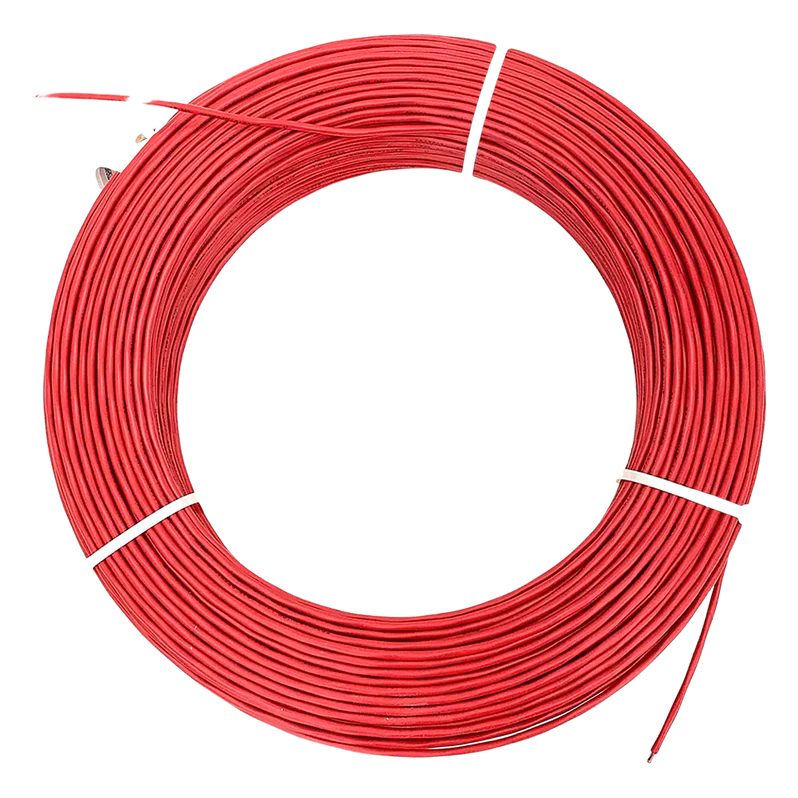

The Protectowire PHSC-356-XCR is a linear heat detection cable rated at 356°F (180°C). It alarms when any point along its length reaches that temperature. As a result, it protects long or hard-to-reach areas that point detectors cannot cover.
This cable carries the XCR jacket. Specifically, XCR is a high-performance fluoropolymer for harsh, corrosive locations. Therefore, it suits both interior and exterior use. In fact, it is FM-approved for corrosive environments.
Protectowire PHSC-356-XCR Construction
Two steel conductors form the core. First, each conductor gets a heat-sensitive polymer insulation. Then, the pair is twisted together under spring tension. Next, a protective tape wraps the conductors. Finally, the outer XCR jacket seals the cable. When heat melts the insulation, the conductors touch and signal an alarm.
- Linear heat detection cable with a 356°F (180°C) alarm rating
- Recommended maximum ambient temperature of 250°F (121°C)
- XCR fluoropolymer jacket for corrosive interior and exterior areas
- FM-approved for corrosive environments
- Nominal diameter of 5/32″ (4 mm); minimum bend radius 2.5″ (6.4 cm)
- Maximum voltage rating of 30 VAC / 42 VDC
- Supplied in a 500-foot box; approximately 8 lbs (3.6 kg)
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.009333 lbs |
|---|---|
| Dimensions | 17 × 17 × 8 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
